MF GC1700 Step
PART No: ACX5423340
Step Up Your Tractor Game
Enhance your tractor’s accessibility with our durable aftermarket step. Designed for the GC1700 series Massey Ferguson tractors, it offers a sturdy, non-slip surface for safe and easy mounting and dismounting. Built to last, this step is a must-have for any tractor owner!
Available in North America and Canada
OVERVIEW
Key Features
- ENHANCED TRACTION
The textured step provides superior traction, even in the toughest and most slippery conditions.
- STURDY AND RELIABLE
Crafted from durable steel with a rust-resistant coating, this step can handle heavy weight under any weather conditions with ease.
- SAFETY FIRST
Designed with safety in mind, the round corners not only ensure your stepping up and down safely, but also your working around the tractor confidently.
- EASY INSTALLATION
Minimal tools required- Mount it securely to your tractor's chassis in minutes. Compatible with all Massey Ferguson GC1700 tractor models.
QUICK GUIDE
KEY FEATURES
The new Tractor Step is designed to help you get on and off your tractor easily and safely.
- ENHANCED FOOTHOLD SUPPORT
The textured step provides unbeatable traction, even in the toughest and most slippery conditions.
- STURDY AND RELIABLE
Crafted from durable steel with rust-resistant coating0, this step can handle heavy weights under any weather conditions with ease.
- SAFETY FIRST
Designed with safety in mind, the round corners not only ensure your stepping up and down safely, but also your working around the tractor confidently.
- EASY INSTALLATION
Mount it securely to your tractor with direct bolt-on setup in minutes.
Installation

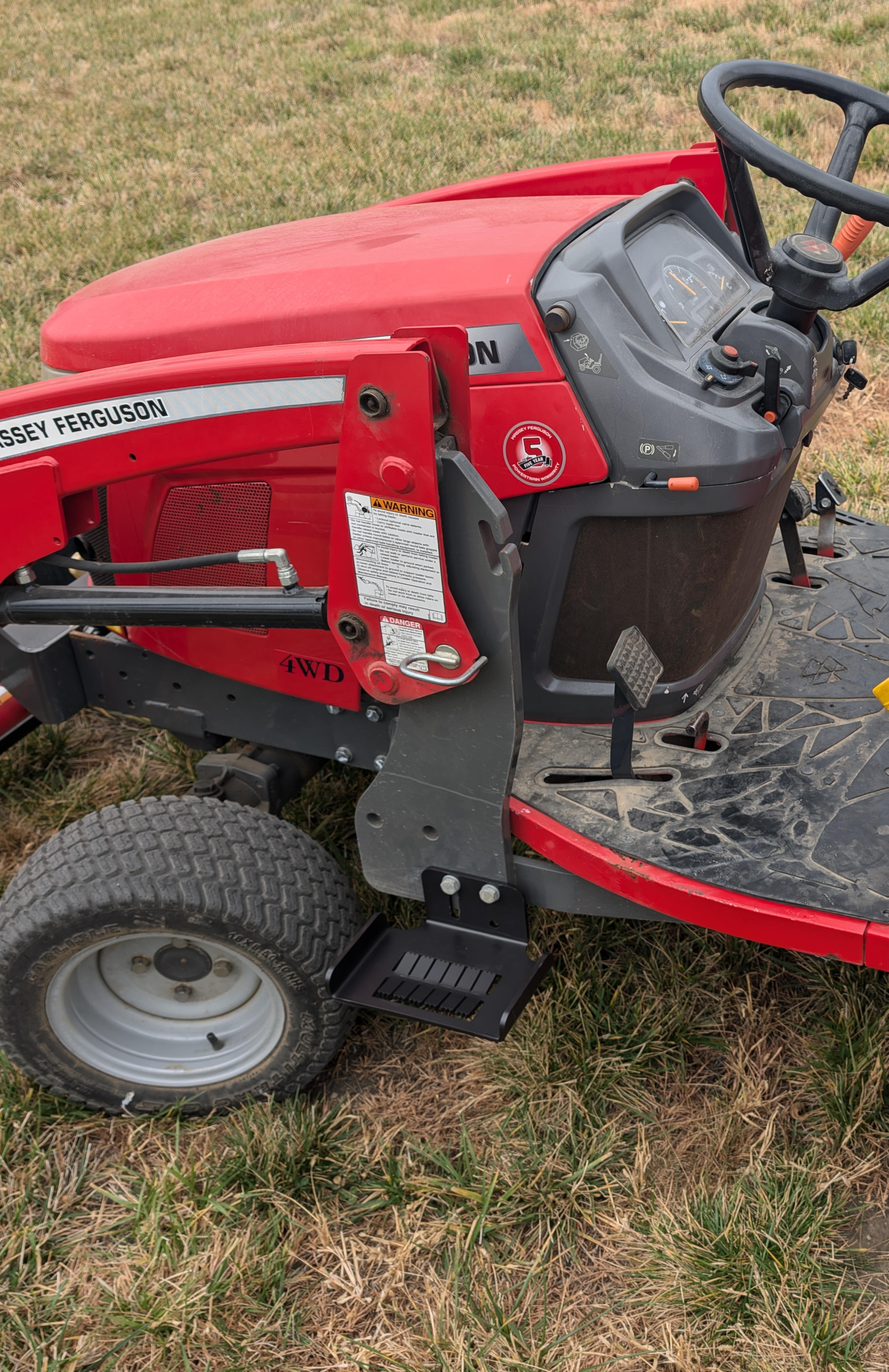

Installation is incredibly simple. Installs on loader frame below platform. More detailed instruction can be found in the "Manual" section.
Be sure to wear proper PPE when using power tools and working in/on/around machinery.
How To Use
To use the aftermarket step, position it securely on the tractor’s mounting points. Ensure it is firmly attached and stable. Be sure to face the tractor, place your foot on the step, grip the tractor’s handhold, and carefully lift yourself up. Reverse the process to dismount, always maintaining a firm grip and steady footing.
HOW TO USE
TBD
SAFETY
Always wear protection shoes and use proper tools when installing the step.
MANUAL
Tools Required
1. 18mm wrench or ratchet and socket
2. 19mm wrench or ratchet and socket
3. 100N-m torque wrench
Parts List
Step Installation: Massey Ferguson GC1700
Installation Procedure

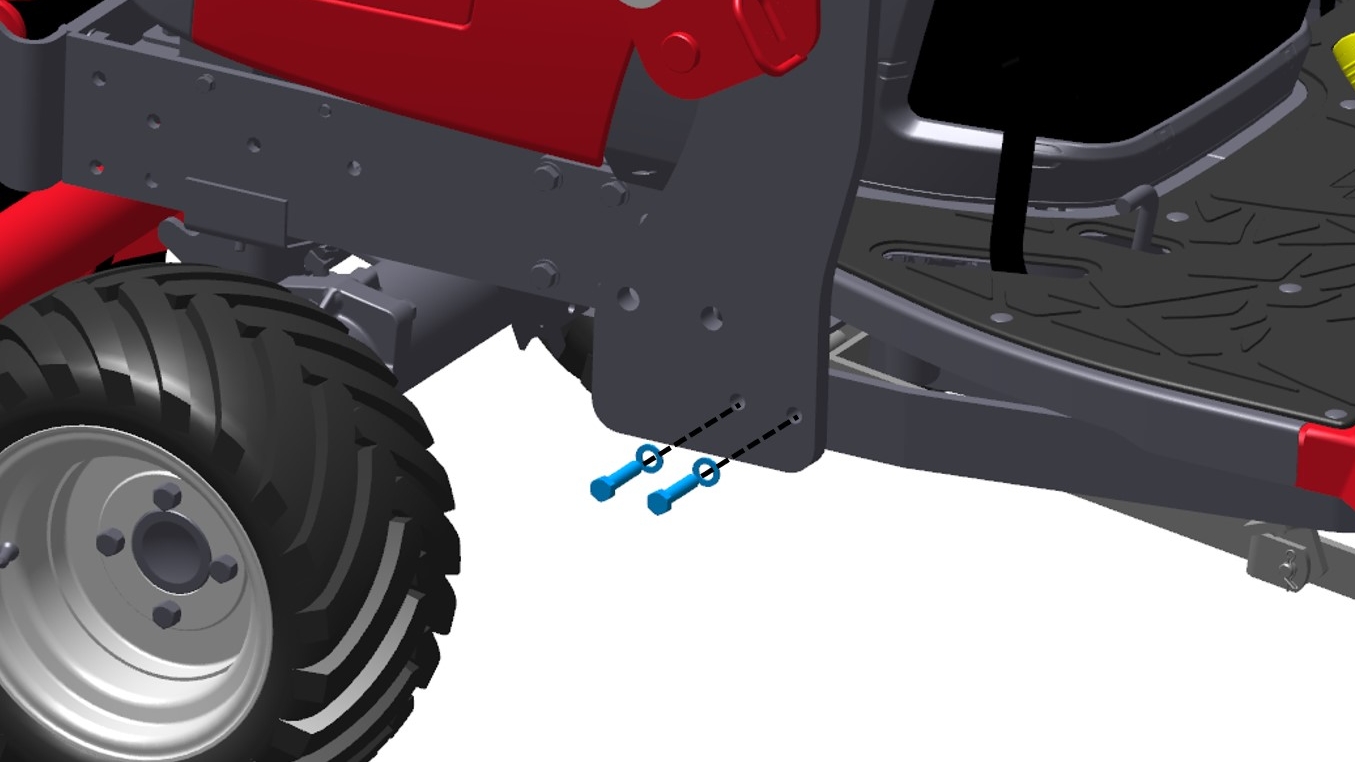

1. Determine which side of the machine the step will be installed on. Left hand installation shown. Remove existing hardware as shown.
NOTE: Installation may vary, images may show machine with optional equipment.
2. Step can be installed at two different heights based on which mounting holes are used. Place the step at the desired height as shown.
3. Install bolts, washers, and nuts as shown. Fasteners should replace hardware removed in step 1.
NOTE: Torque fasteners to 100+20 N-m.
FAQs
How do I know if this will fit my machine?
This step is desgned to all past and present GC1700 Series Sub-Compact Massey Ferguson Tractors. Compatible models include MF GC1723E, MF GC1723EB, and MF GC1725M.
What is the weight capacity of the step?
The step was designed follwing ISO standard 26322 and can support ~270 lbs or 122kg.
What material is the step made from?
The bracket made with 6mm grade 80 steel with a durable, corrosion resistant, black finish. Mounting hardware is a weather resistant zinc flake coated steel.
VIDEOS
Last update 11.6.2024
PART No: ACX5194800
NEVER SLIP AGAIN!
Do you hate struggling to climb onto your tractor, especially when it’s wet or muddy? With our new heavy duty step, you can goodbye to slippery surfaces and help you get on your tractor easily and safely.
Compatible with Massey Ferguson GC17xx Sub Compact Tractor
