MF 2600H CUPHOLDER
PART No: ACX5188040
Refreshment Right Where You Need It
This aftermarket cup holder gives operators a convenient place to safely and securely store a beverage while doing the work that matters
Available in North America, and Canada
OVERVIEW
Key Features
- SECURE HOLD
The adjustable bracket ensures your drink stays put, where you want it, even during the most bumpy rides.
- UNIVERSAL CUP FIT
Designed to hold most popular cup sizes. Tested with 16, 24, and 32 fl oz tumbers from the most popular brands like Yeti, Hydro Flask and Stanley. Designed multiple configurations for variously sized cups!
- WEATHERPROOF
Rain or shine, your beverage remains safe and accessible. Designed with longevity in mind!
- SAFETY FIRST
Designed with safety in mind. Rounded, smooth, corners ensure the cup holder won't catch or snag operators as they use tractor steps and handrail.
- EASY INSTALLATION
Minimal tools required- Mount it securely to your tractor's handrail in minutes. Compatible with all Massey Ferguson 2600H tractor models with a 1" handrail.
QUICK GUIDE
Installation
Installation is incredibly simple. Install on handrail, above steps. More detailed instruction can be found in the "Manual" section.
Be sure to wear proper PPE when using power tools and working in/on/around machinery.

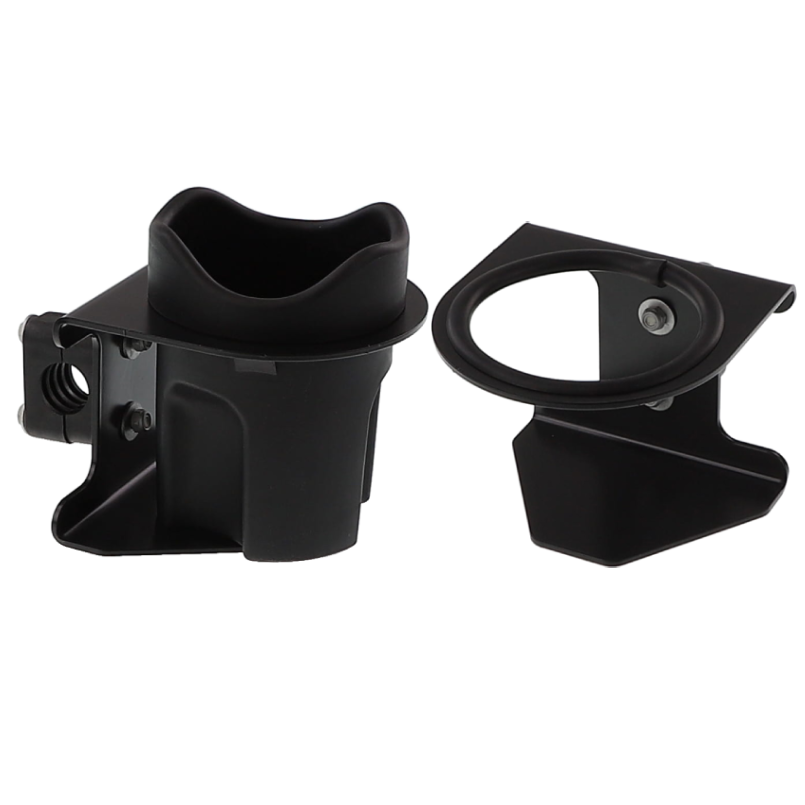

Large Beverages
Install the supplied edge liner on the insde of the cup holder as shown above
Note: Rubber insert will not be used in this configuration
Small Beverages
Install the supplied rubber insert on the insde of the cup holder as shown above
Note: Edge liner will not be used in this configuration
MANUAL
2x 10mm wrenches, required for installation

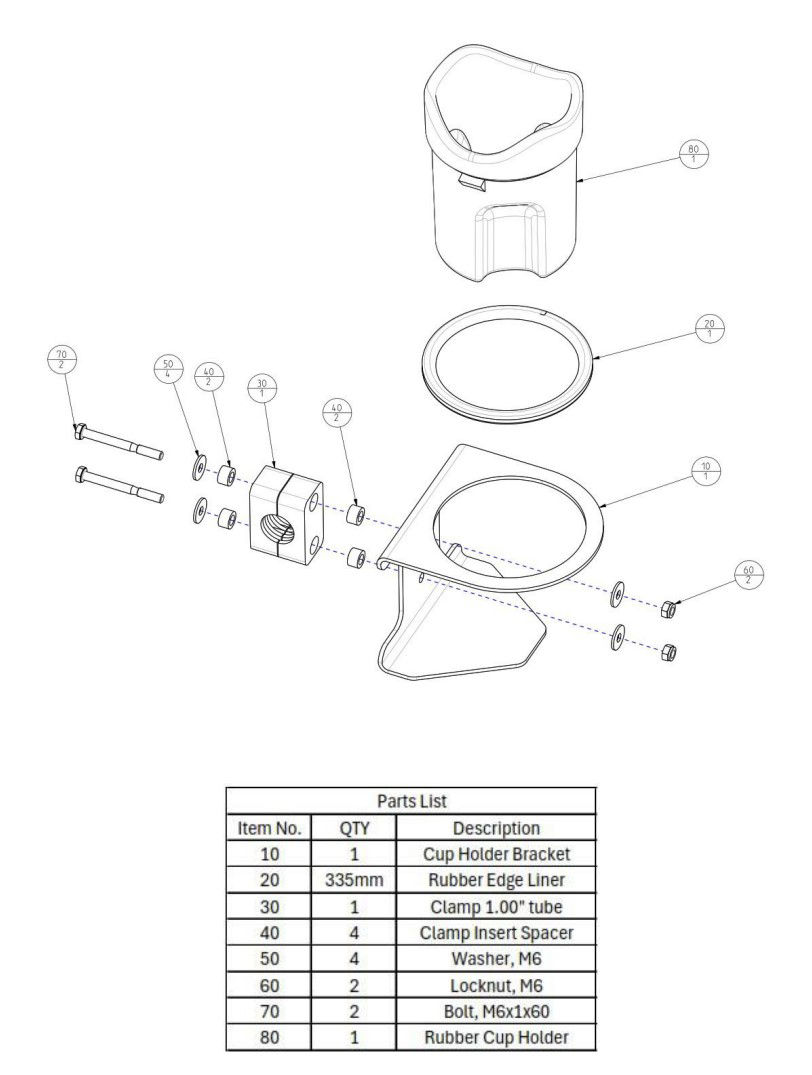

Parts List
Cup Holder Installation: Massey Ferguson 2600H
Installation Procedure
1. Install cup holder on horizontal tube as shown.
NOTE: Torque fasteners to 12+3 N-m.
2. For use with larger beverages, install the supplied edge liner on the inside of the cup holder as shown.
NOTE: Rubber insert will not be used in this configuration.
3. For use with smaller beverages, install the supplied rubber insert on the inside of the cup holder as shown.
NOTE: Edge liner will not be used in this configuration.
FAQs
How do I know if this will fit my machine?
This cup holder is desgned to all past and present Massey Furgeson 2600 H series tractors. Compatible models include MF2602H, MF2605H, MF2606H and MF2607H.
It can also be mounted and used on any pipe/tube with an outer diameter of 1" parallel to the ground.
What sizes of cups will this hold?
The cup holder has been tested holding various types and sizes of cups and beverages. For larger beverages the rubber insert can be removed and edgeliner can be installed. Smaller beverages will requre the edgeliner to be removed and the larger rubber insert to be installed.
What material is the cup holder made from?
The cup holder and edge liner are made out of a durable, weather and UV resistant rubber. The bracket is of rugged steel construction with a durable black finish. Mounting hardware is a weather resistant zinc flake coated steel.
VIDEOS
Last update 10.29.2024
