CLEAR-Wiper

SAFETY BEGINS WITH CLARITY – AND CLARITY IS RESTORED WITH THE CLEAR-WIPER

When mowing with a boom mower, working in heavy rain, on building sites, in windy conditions or in snowfall, the side windows of the tractor can become very dirty. The CLEAR-Wiper helps to remove the dirt.
It can be installed on tractors, harvesters and any other vehicles.

Now available!

OVERVIEW

PRODUCT OVERVIEW

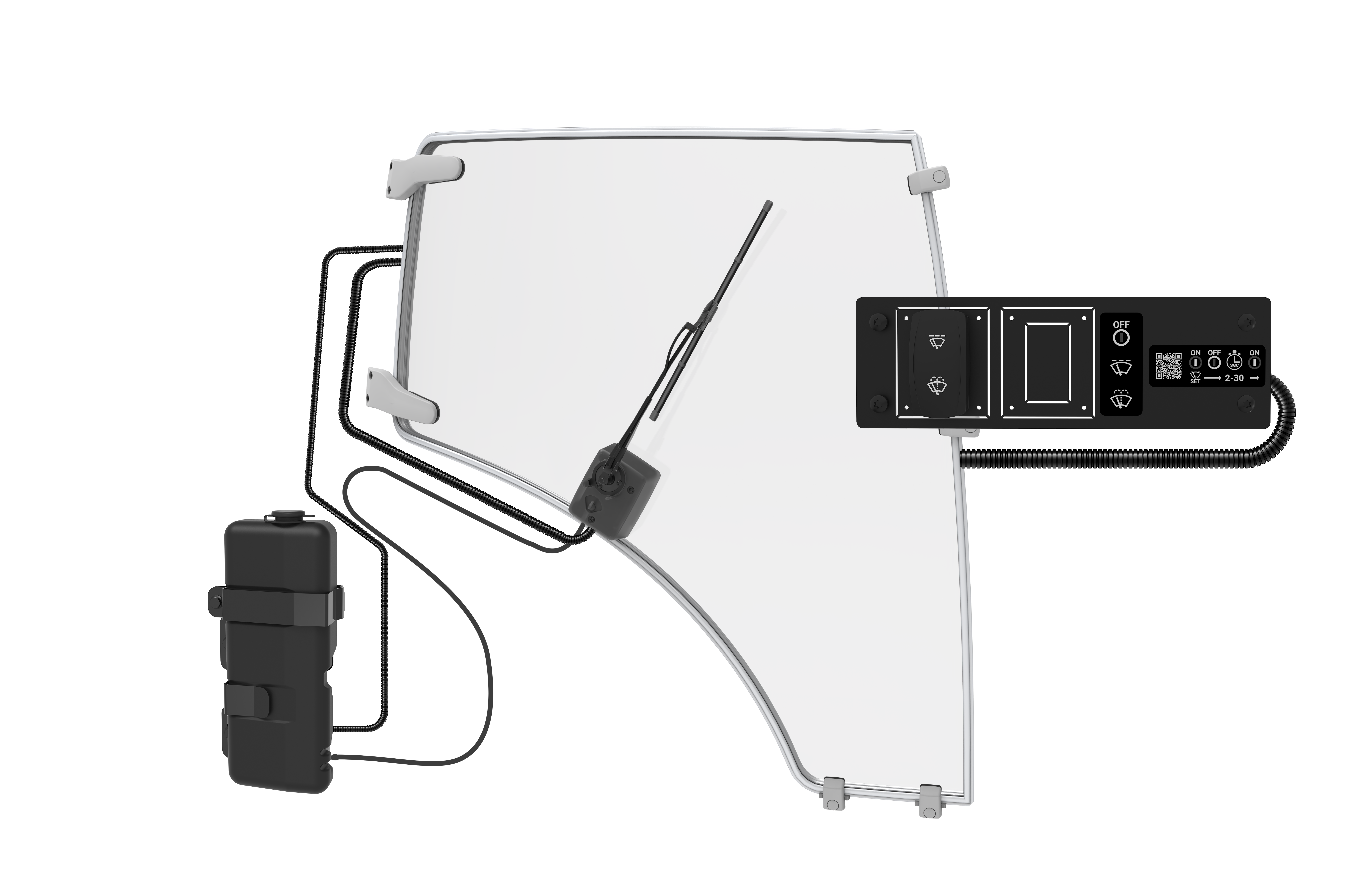

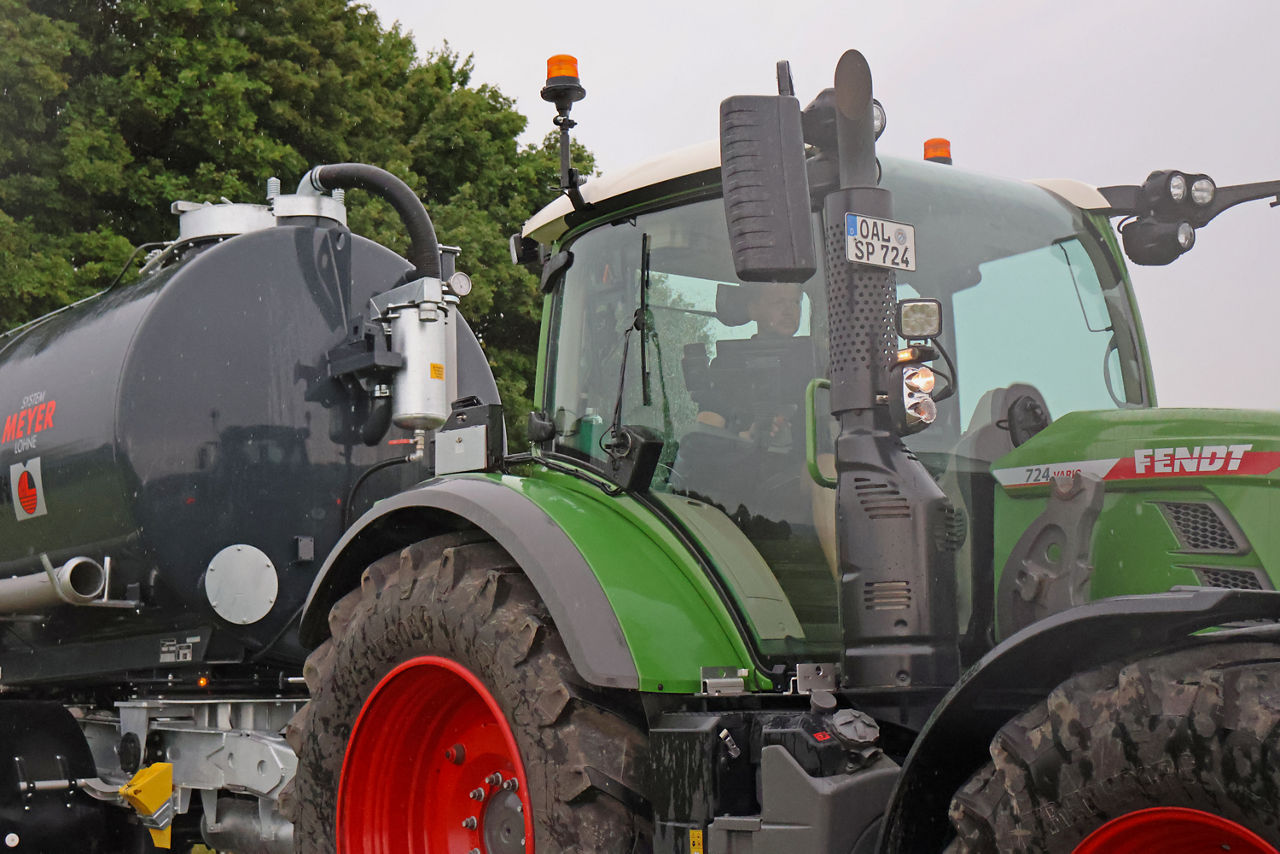

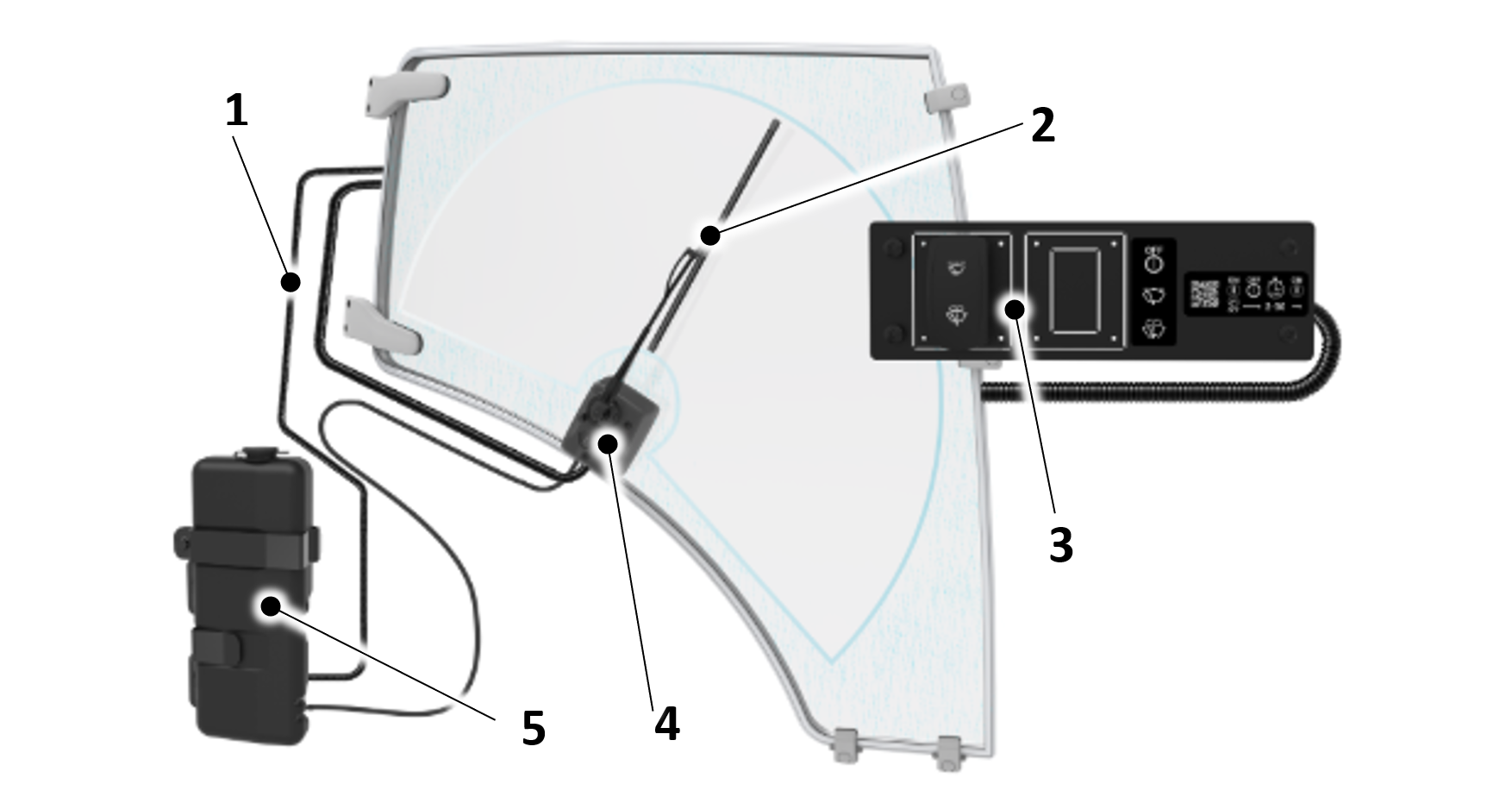

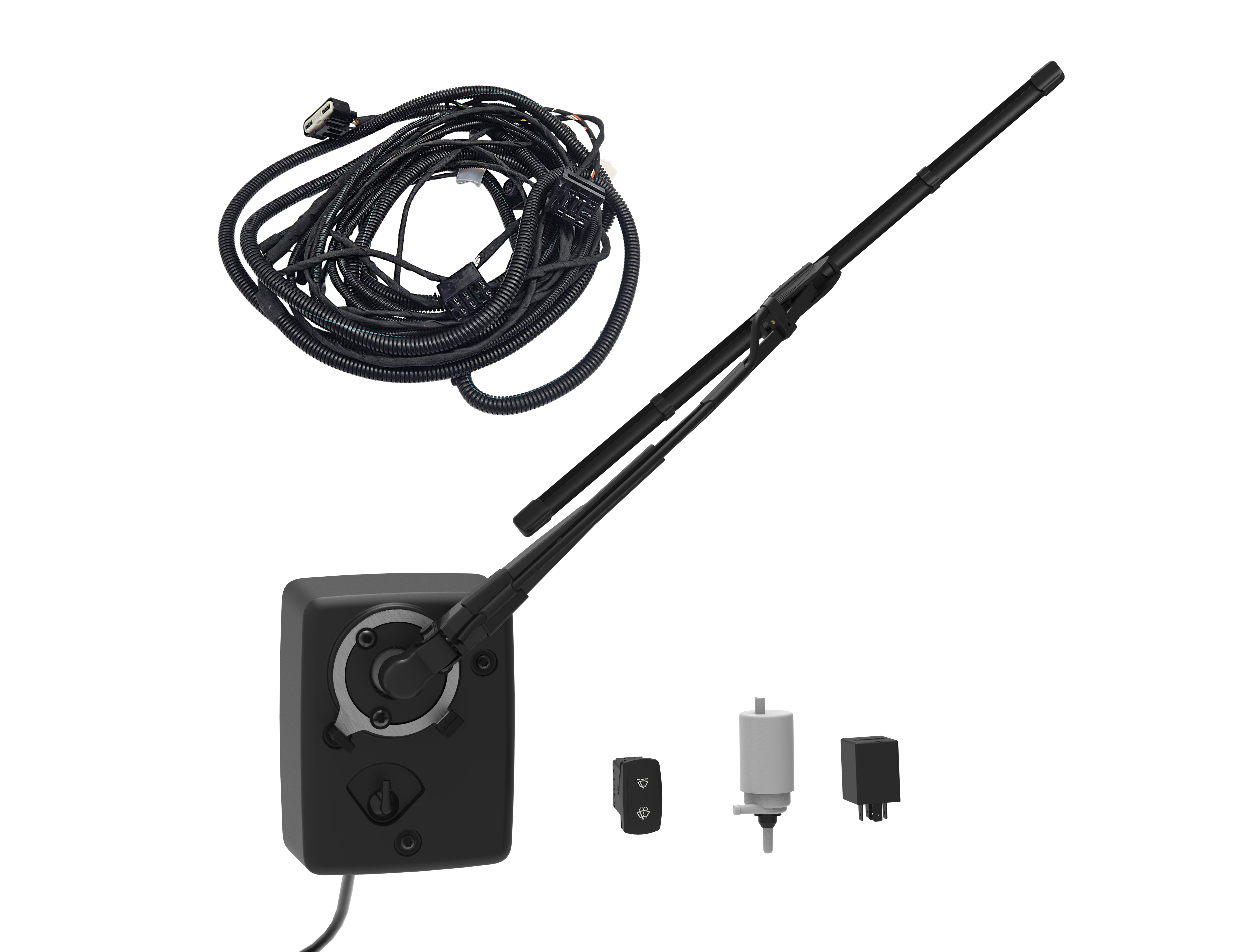

components of the CLEAR-Wiper

1. Wiring harness

2. Wiper Arm/ Blade

3. Operation unit

4. Wiper unit

5. Tank/ Pump/ Bracket

KEY FEATURES

COMPATIBLE

The CLEAR-Wiper can be attached to tractors, harvesters and other vehicles thanks to its simple adhesive connection.

Customisable

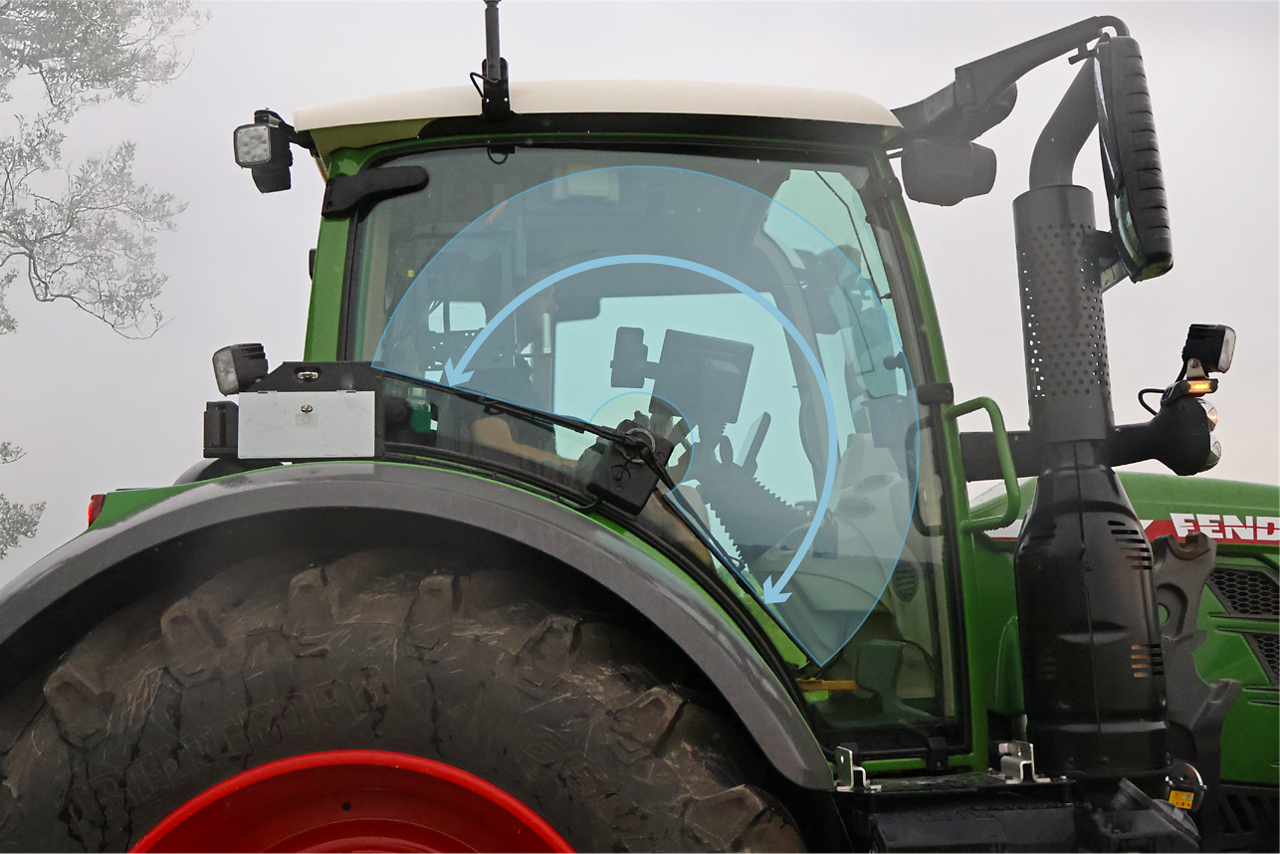

Simply put together the optimum wiper for your vehicle. You can freely define the wiper angle between 45° and 330° on the vehicle.

INTUITIVE

Even for occasional drivers, operation is very simple and quickly becomes the norm. Experience fast and thorough cleaning of the window.

SIMPLE

The installation is uncomplicated and does not require any complex conversions.

SAFETY

A clear view around the vehicle is important for safe driving.

Flexibility

You can select an interval time between 2 - 30 seconds in which the wiper should work. Wiper water can be switched on in the event of extreme smudging.

CLEAR-WIPER KITS

FENDT KITS

All kits include the following items:

All parts for providing the glue connection
Wiper unit
Pump and Hose
Wiperarm and -blade
Wiring harness
Operation switch

Part No.: X991635195000

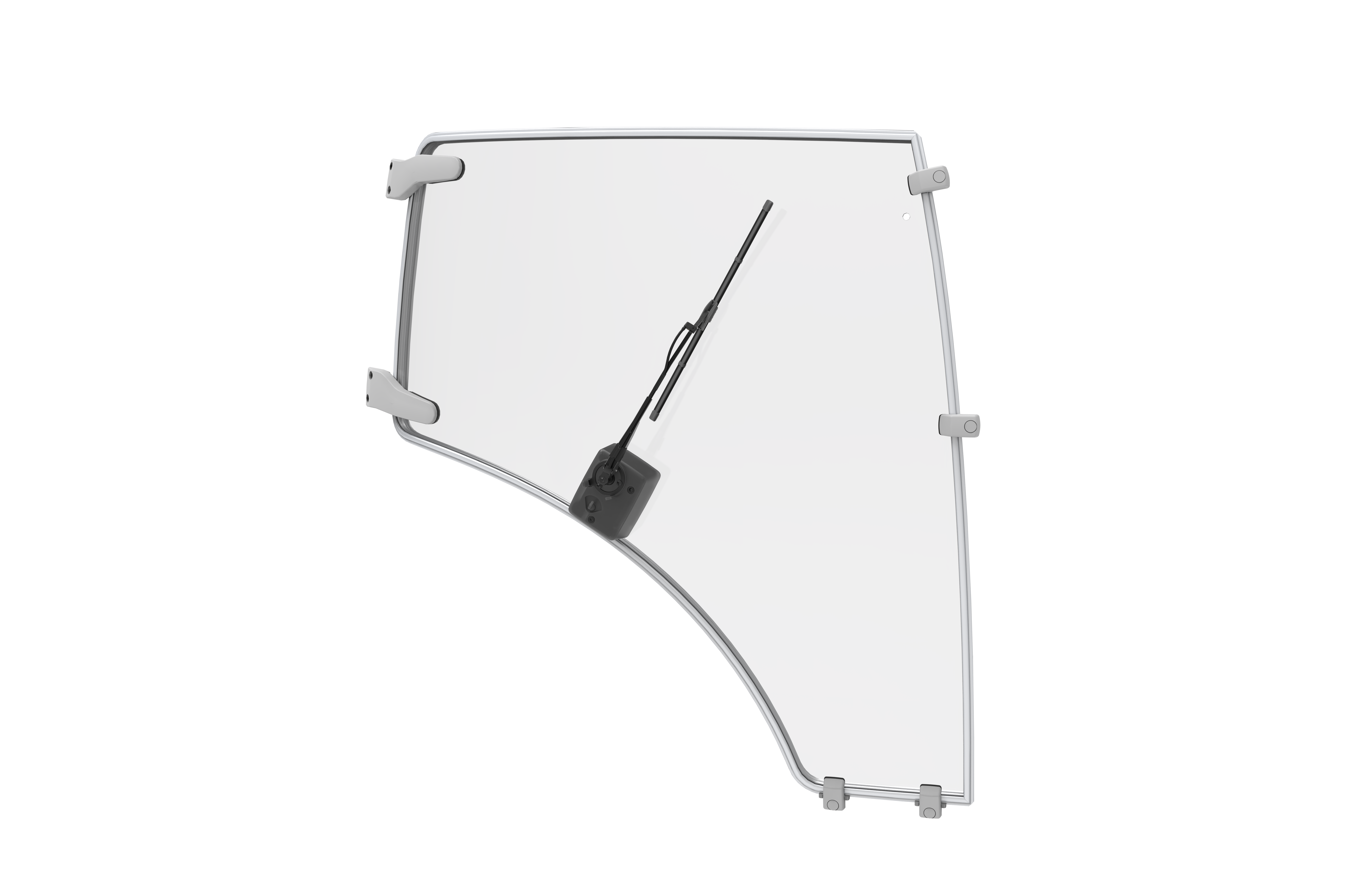

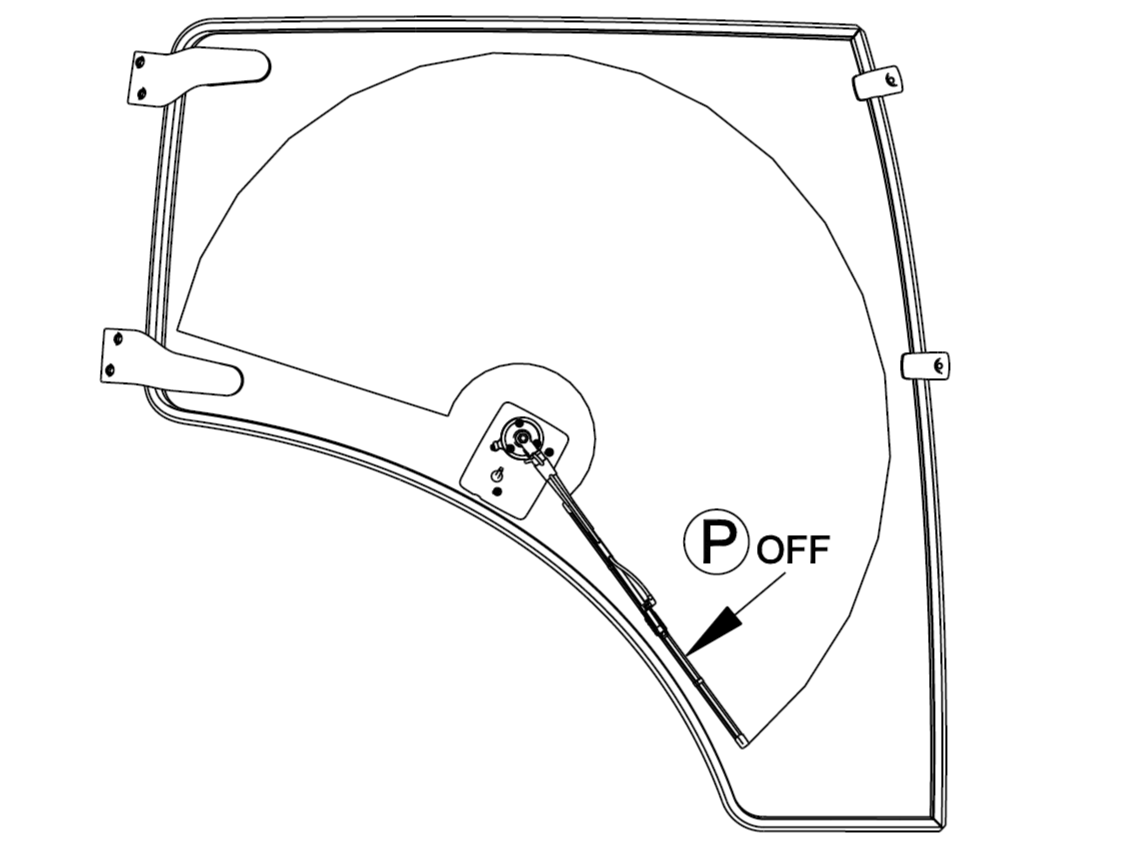

Fendt 300-700 Vario Panorama R

Fendt 300 Vario Gen3, Gen4, Gen5
Fendt 500 Vario Gen1, Gen2, Gen3, Gen4*
Fendt 600 Vario Gen1*
Fendt 700 Vario Gen4, Gen5, Gen6, Gen7*

* without factory installed wiper right

Part No.: X991635196000

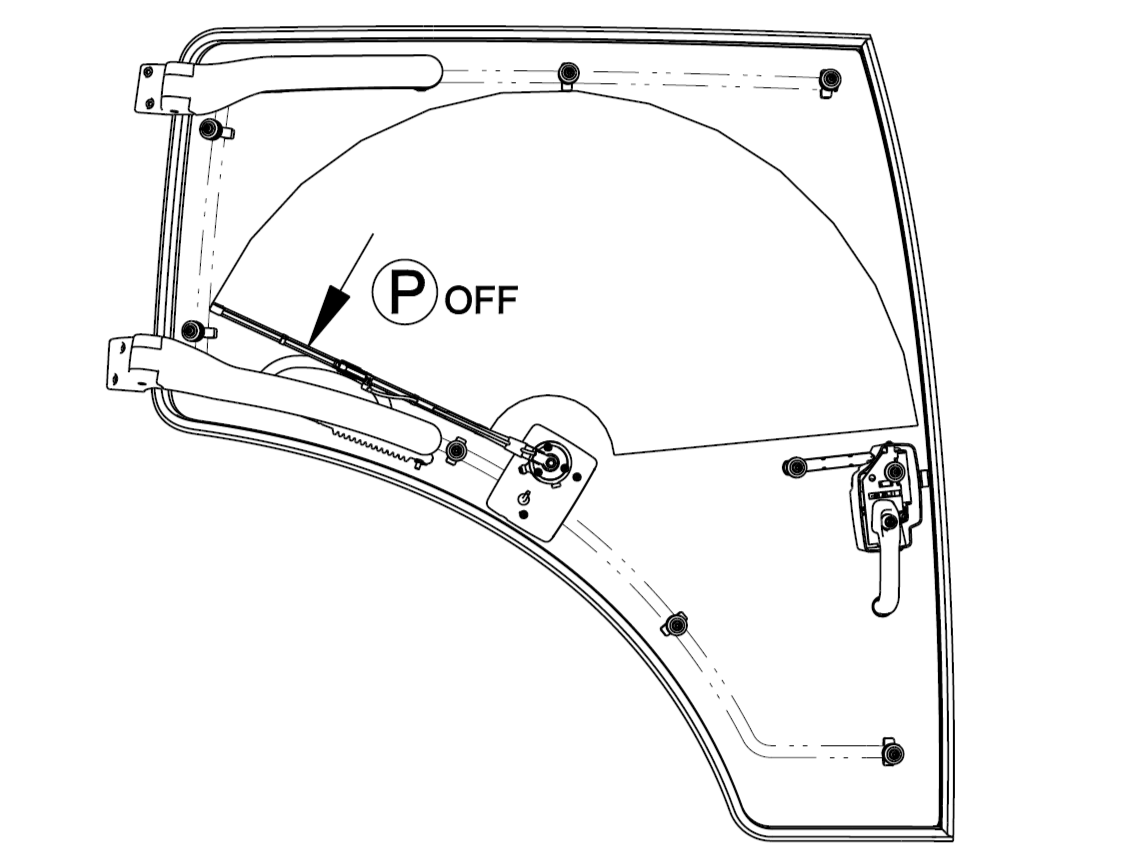

Fendt 300-700 Vario Door R

Fendt 300 Vario Gen3, Gen4, Gen5
Fendt 500 Vario Gen1, Gen2, Gen3, Gen4*
Fendt 600 Vario Gen1*
Fendt 700 Vario Gen4, Gen5, Gen6, Gen7*

* without factory installed wiper right

Part No.: X991635197000

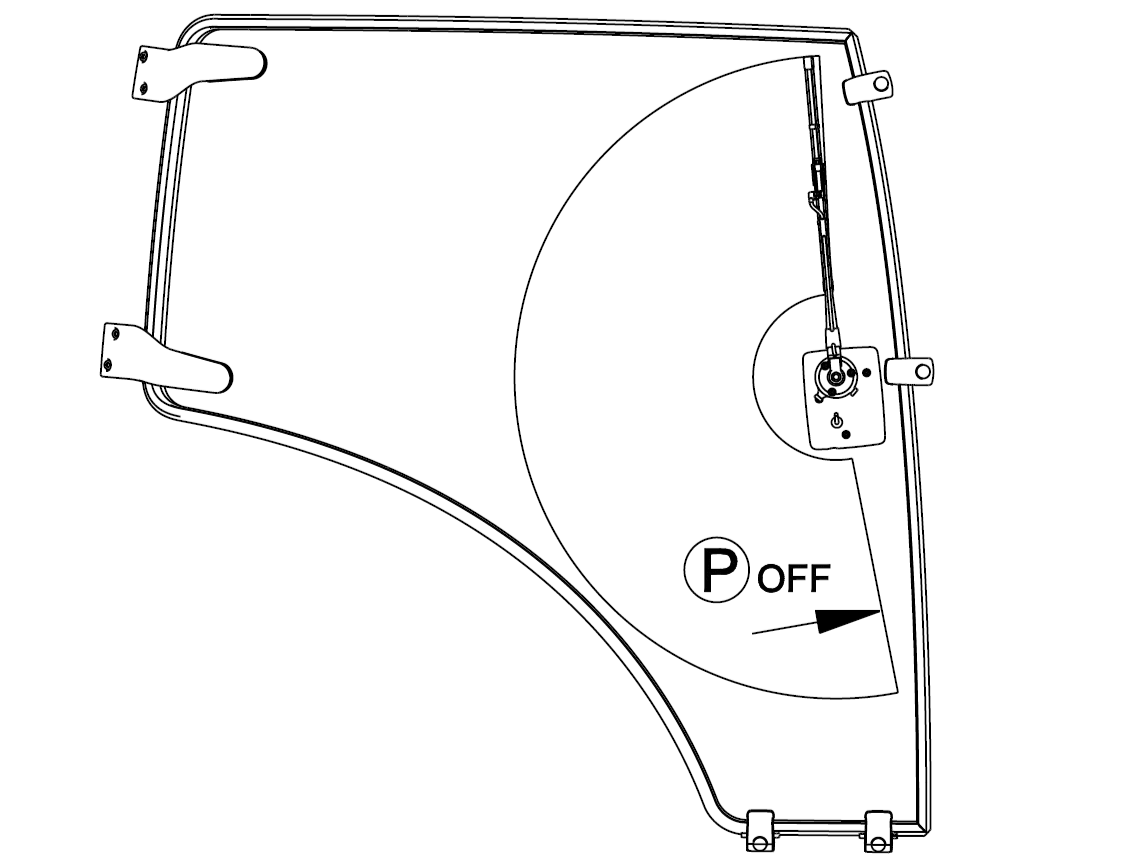

Fendt 300-700 Vario Panorama R Front

Fendt 300 Vario Gen3, Gen4, Gen5
Fendt 500 Vario Gen1, Gen2, Gen3, Gen4*
Fendt 600 Vario Gen1*
Fendt 700 Vario Gen4, Gen5, Gen6, Gen7*

* without factory installed wiper right

Part No.: X991635198000

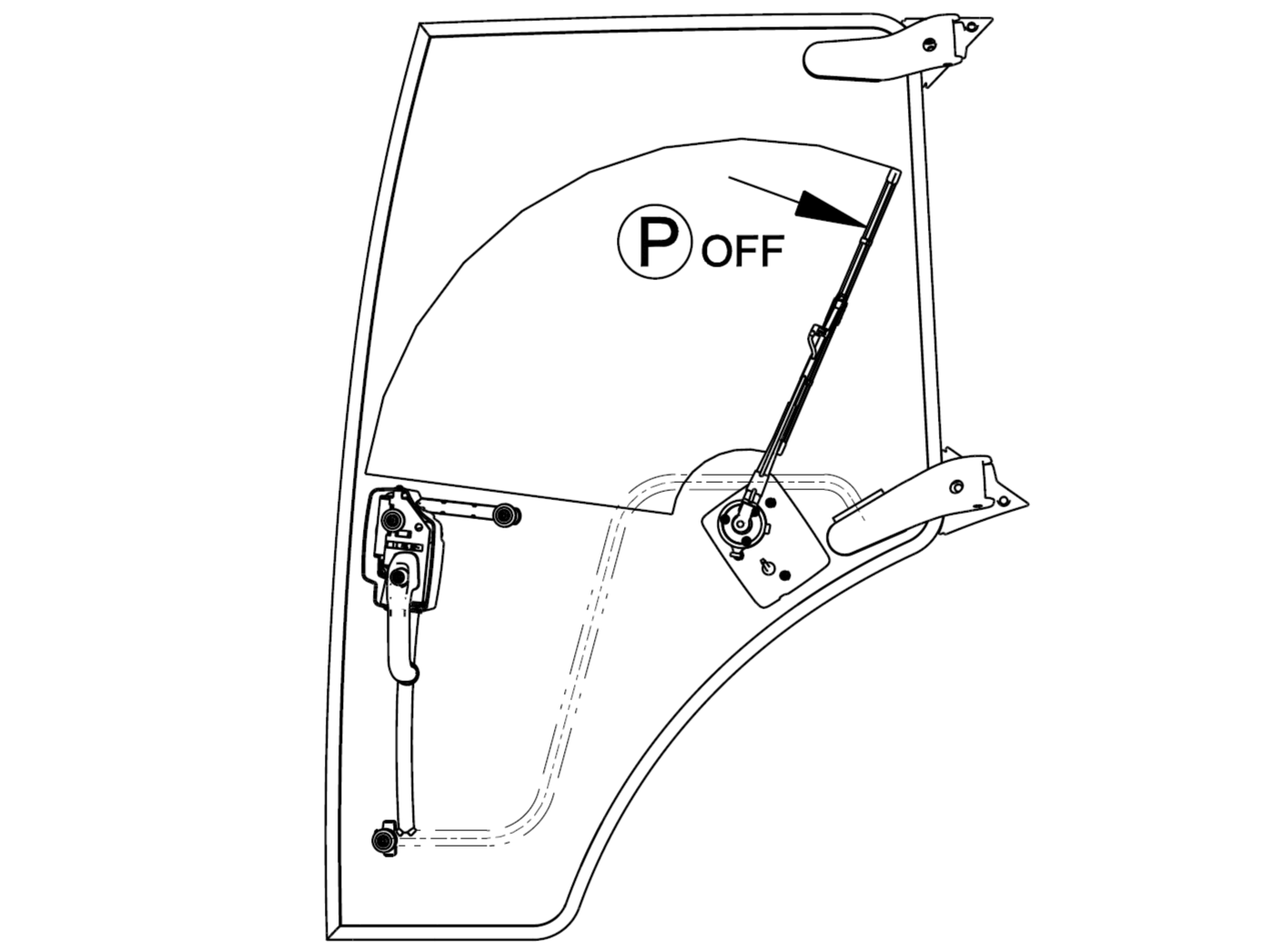

Fendt 300-700 Vario Door Left

Fendt 300 Vario Gen3, Gen4, Gen5
Fendt 500 Vario Gen1, Gen2, Gen3, Gen4
Fendt 600 Vario Gen1
Fendt 700 Vario Gen4, Gen5, Gen6, Gen7

Part No.: X991635199000

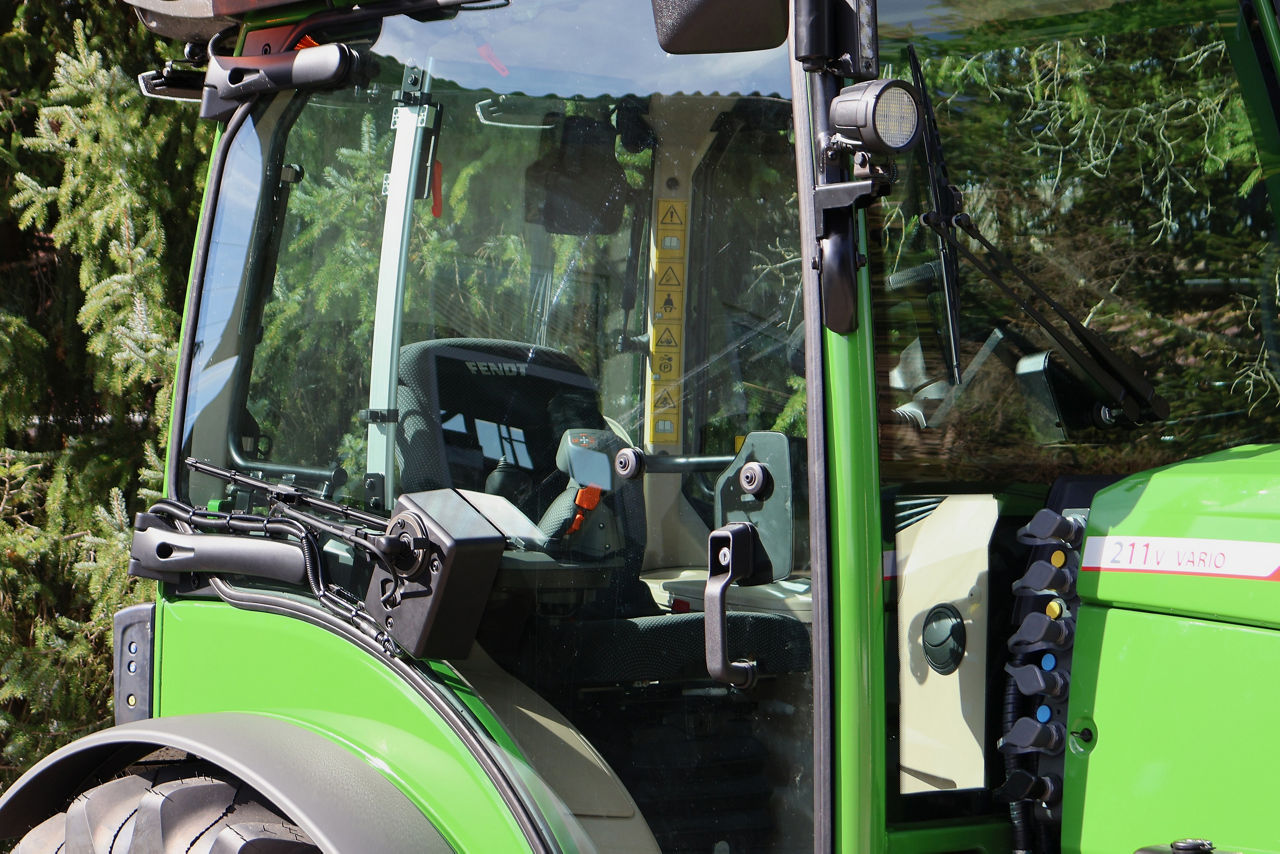

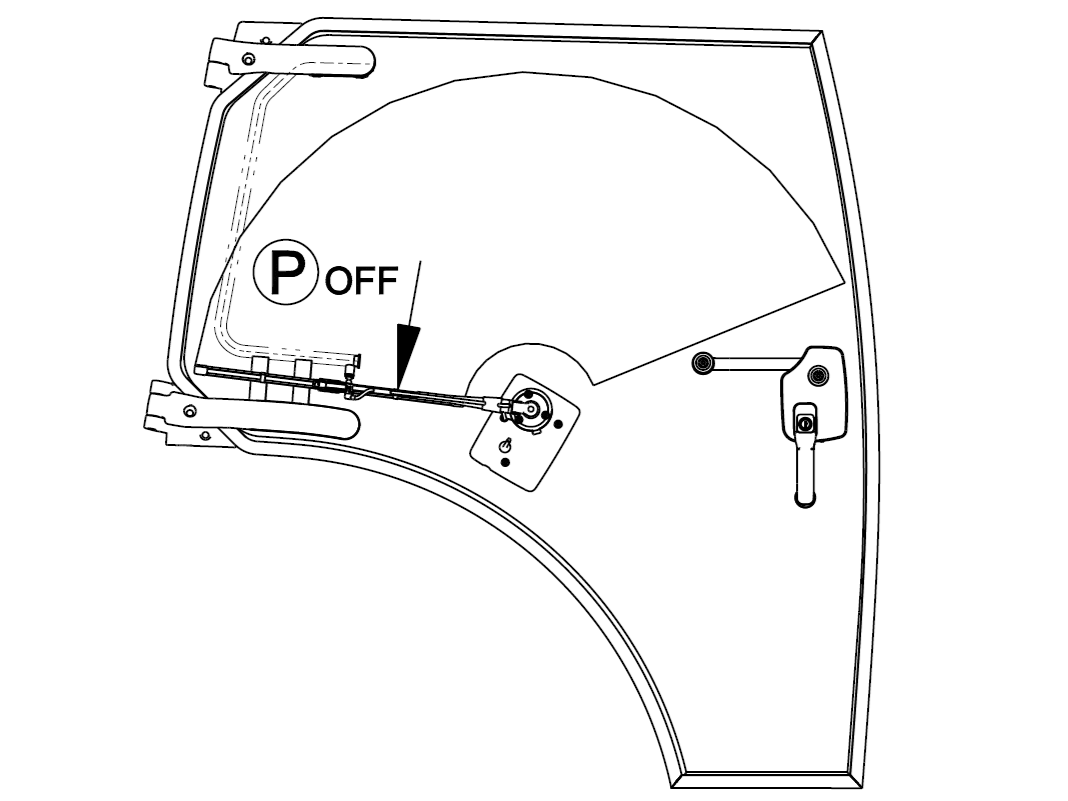

Fendt 200 V/F/P Vario & Fendt e100V Vario Door Right

Fendt 200 V/F/P Vario Gen3
Fendt e100V Vario Gen1

Part No.: X991635202000

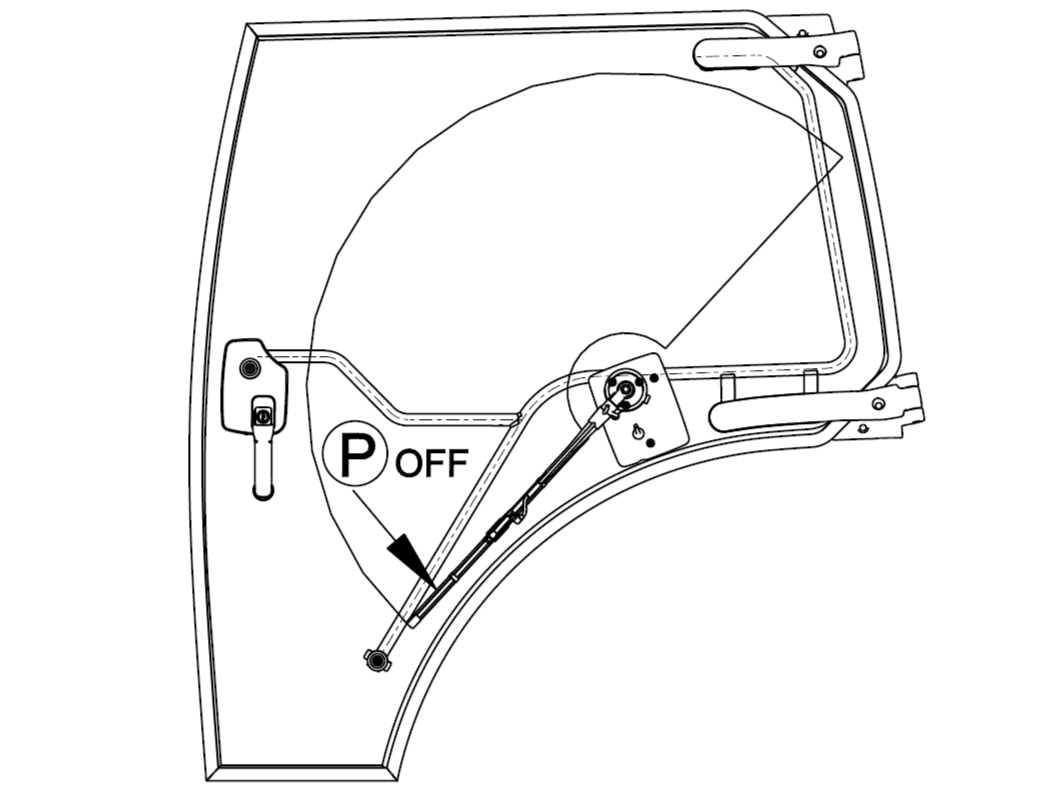

Fendt 200 V/F/P Vario & Fendt e100V Vario Door Left

Fendt 200 V/F/P Vario Gen3
Fendt e100V Vario Gen1

UNIVERSAL KITS

For installation on a window of any type of vehicle with 12V power supply.

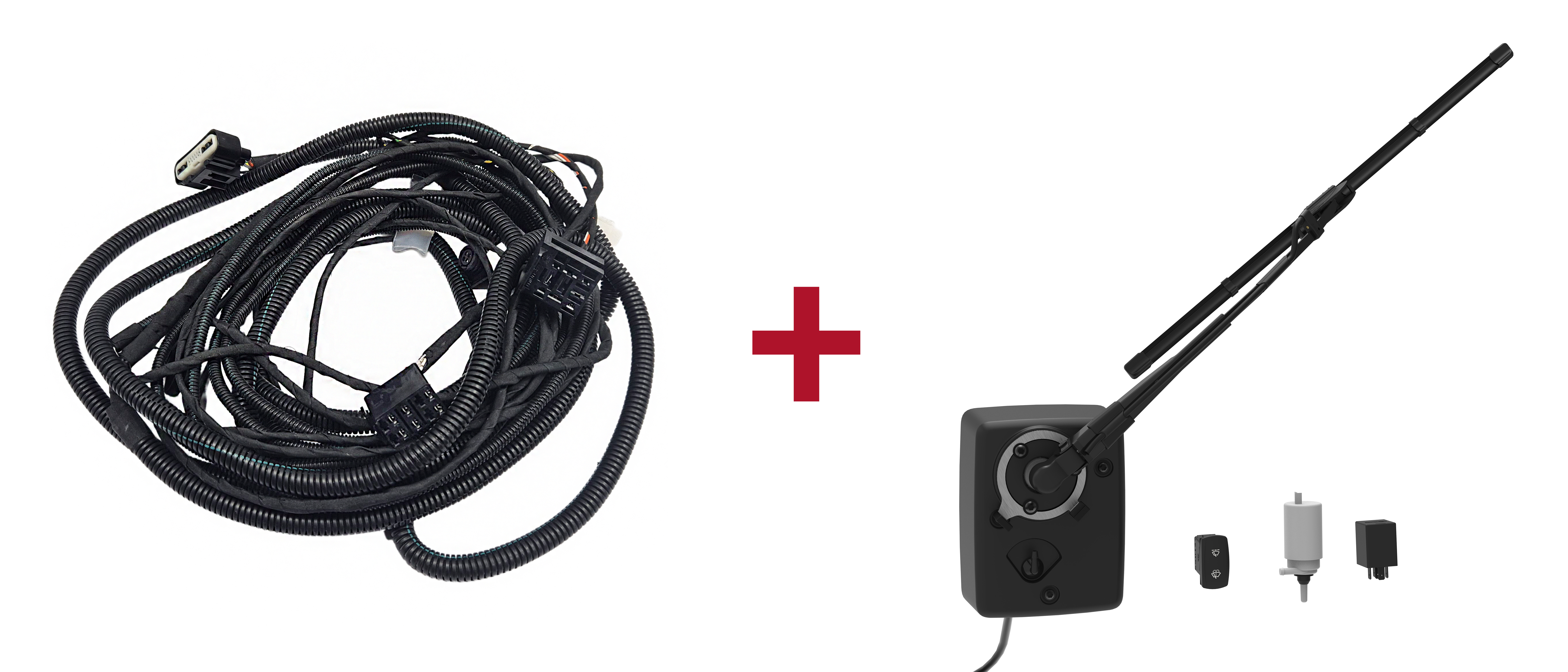

For a complete universal kit, a wiper and a cable set must be ordered.

WIRING HARNESS

You must choose between the following options.:

X991635208000

Wiring Harness - short Version

2600 MM

X991635209000

Wiring Harness - long Version

4600 MM

The length in the last column describes the part of the wiring harness which is connected to the wiper unit outside the cabin.

Guidline:
Go to your machine

Use a Rope to represent the routing from the power supply to the position of the wiper
Measure the determined length and choose the most suitable wiring harness

WIPER

You will find detailed instructions on measuring the required wiping radius and kit in the Manuals tab.

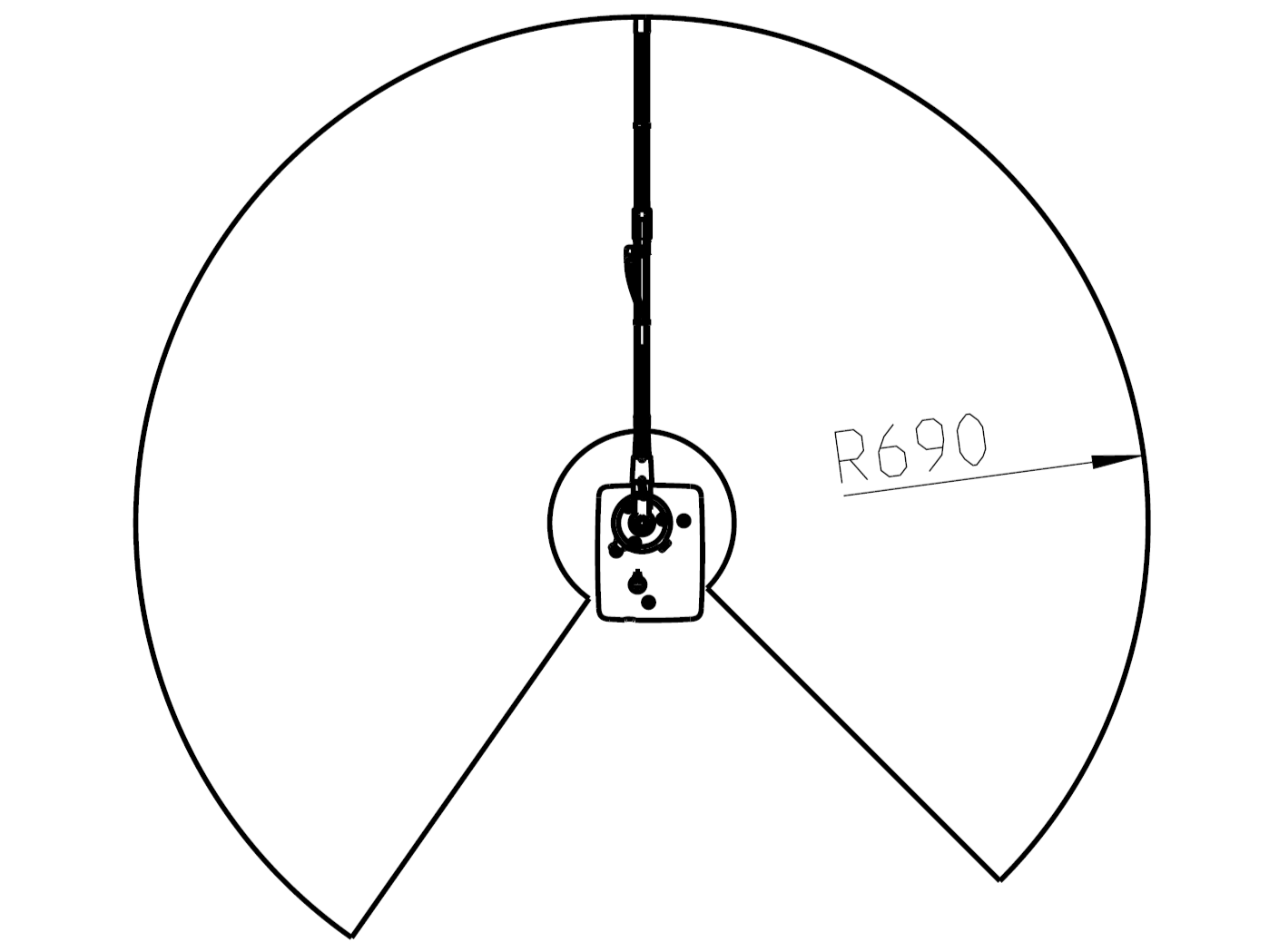

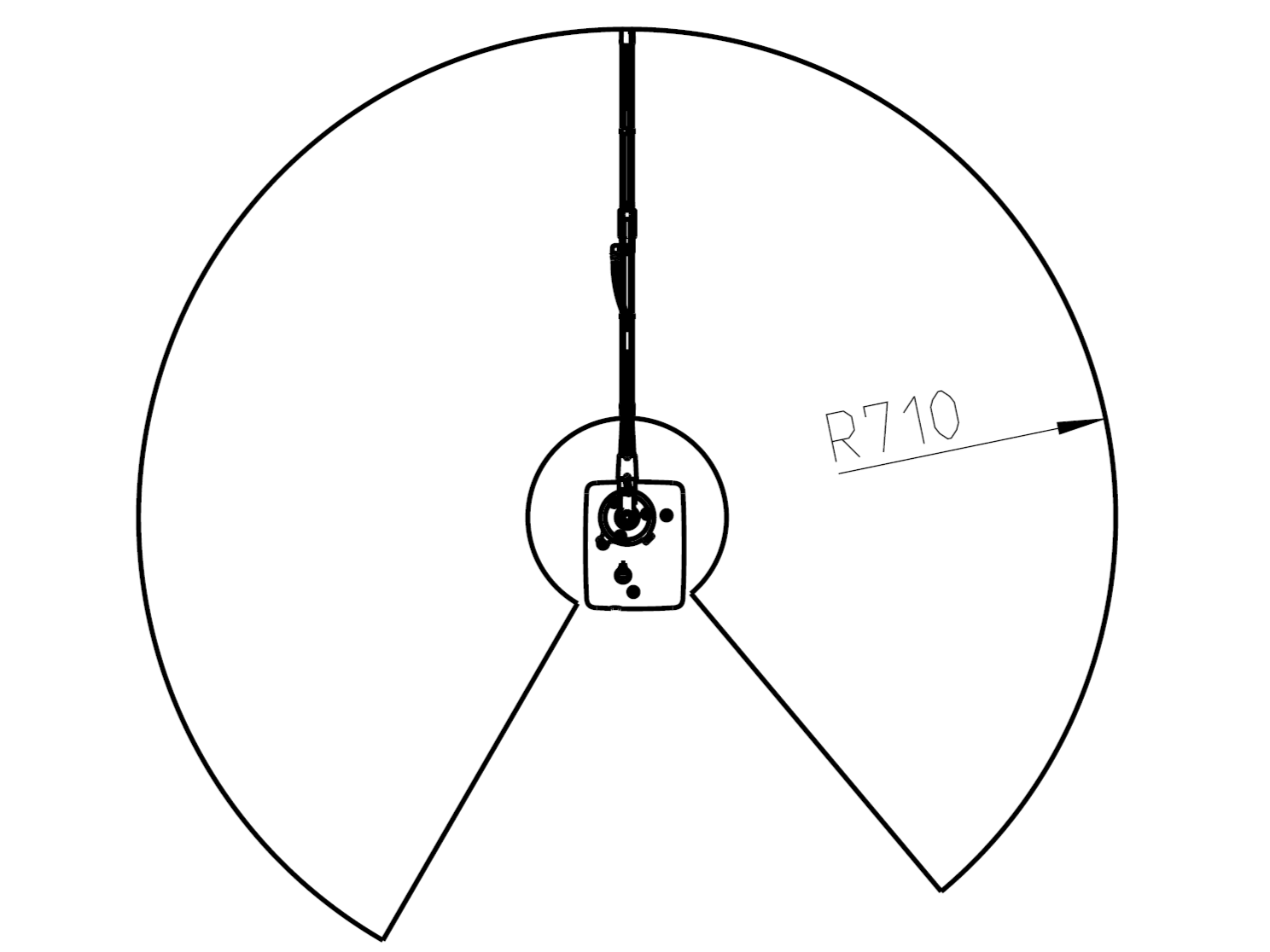

The following wipe areas are the maximum range the arm/blade can be moved without collision to the wiper housing.
The minimum angle is 45° and the maximum angle is 330°.
During the teaching process of the motor, the endstop positions can be adjusted.

Part No.: X991635194000

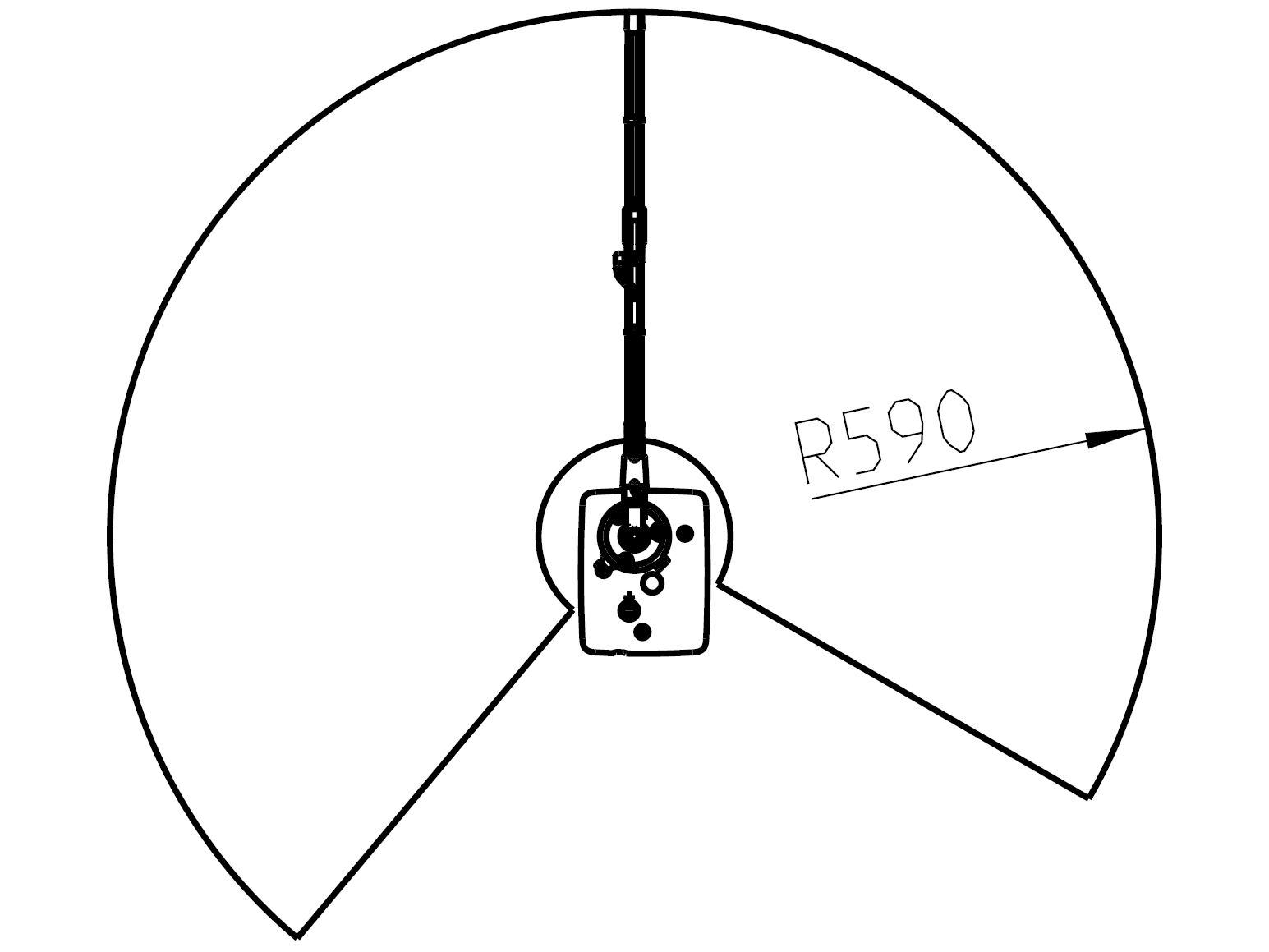

CLEAR Wiper Universal R590

Part No.: X991635215000

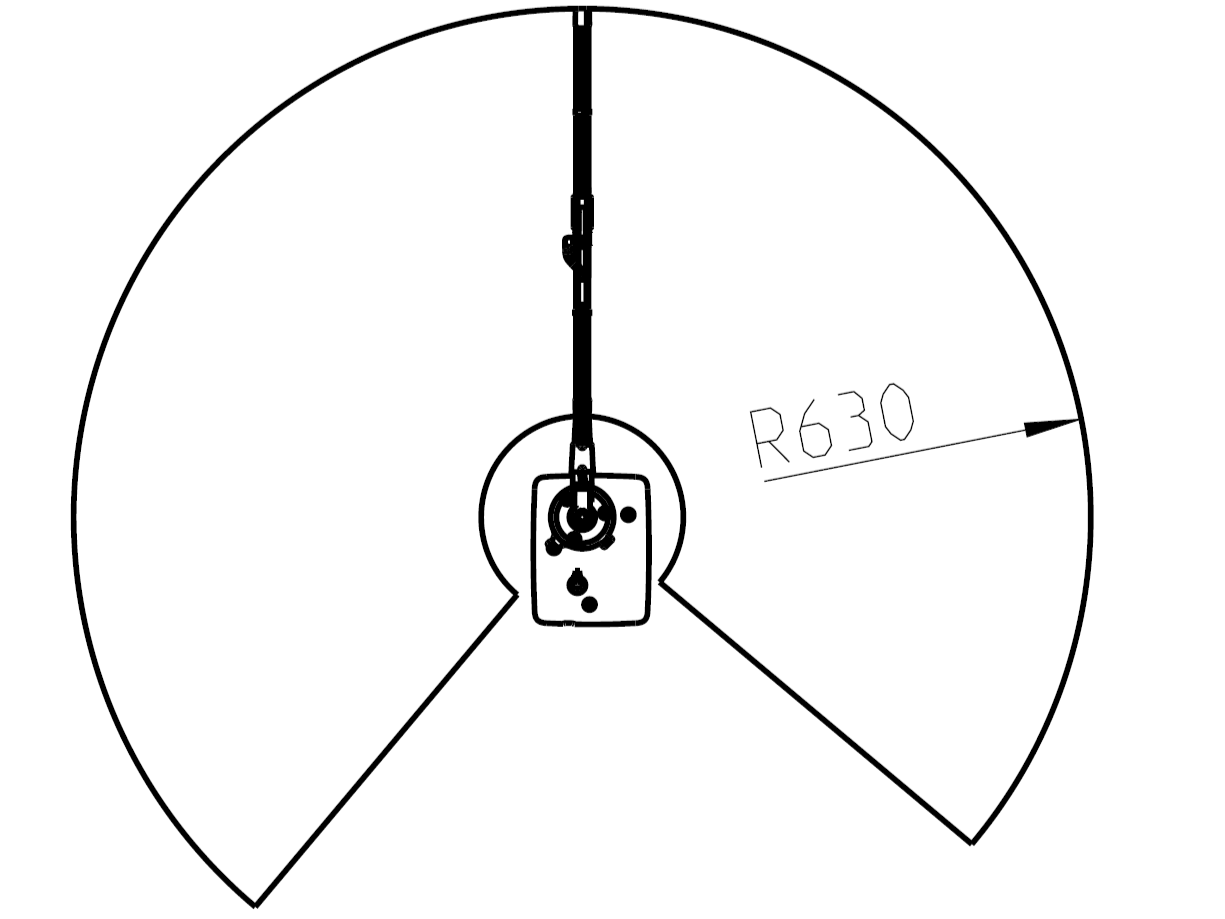

CLEAR Wiper Universal R630

Part No.: X991635216000

CLEAR Wiper Universal R690

Part No.: X991635217000

CLEAR Wiper Universal R710

OPTIONAL MOUNTING KITS

Part No.: X991635213000

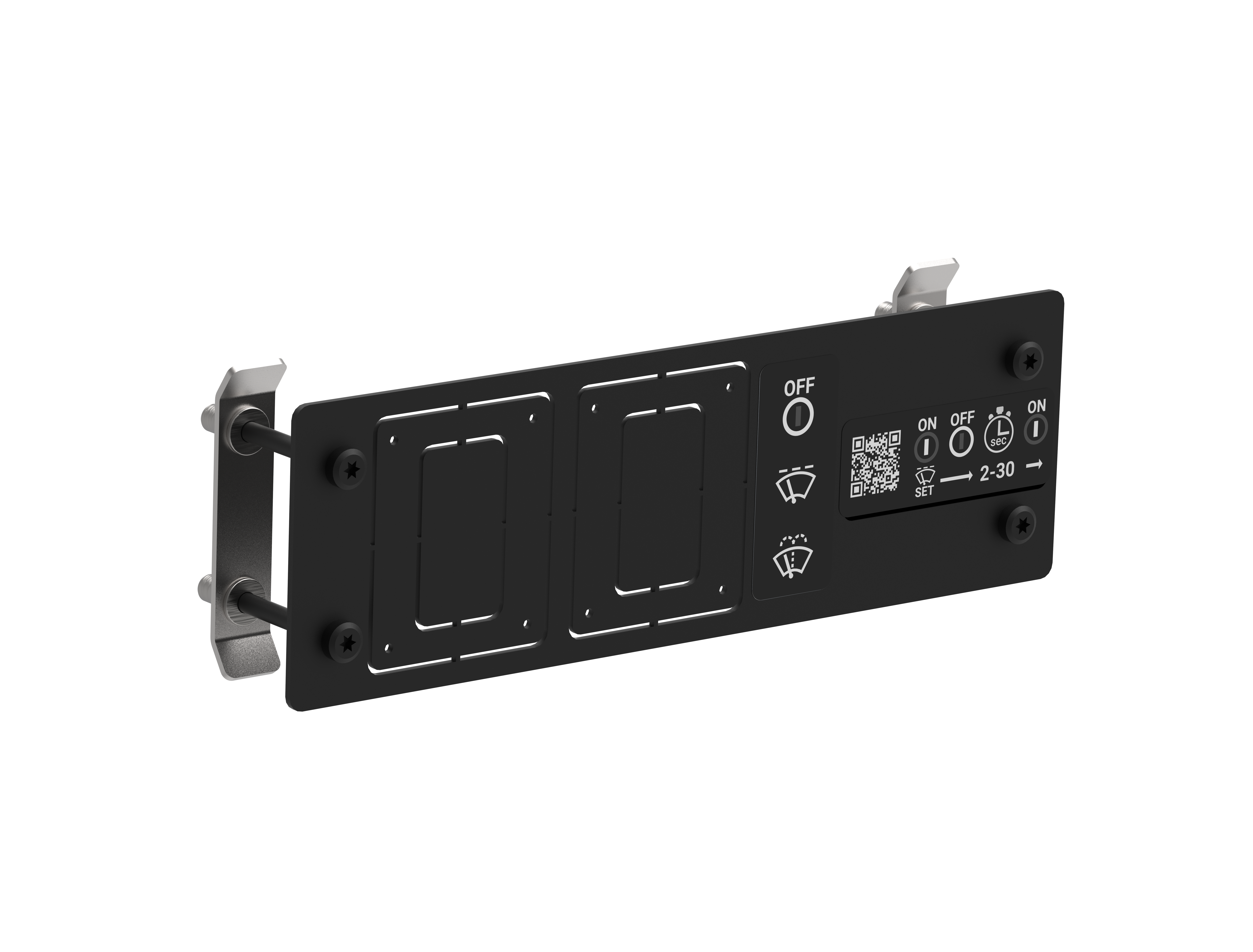

Control unit cover

For installation of up to 2 switches

Cover can be installed the roof at Fendt-tractors replacing the storage box or at any suitable location in the cabin

Below you will find two documents available for download.

Rocker switch:
Here you will find the dimensions of the rocker switch – if it is to be installed without the optional cover.

Download_Dimensions_Rocker_switch (.pdf)

Control unit cover:
Here you will find the dimensions of the cover and the small frame, which can be removed.

Download_Dimensions_Control_unit_cover (.pdf)

Part No.: X991635211000

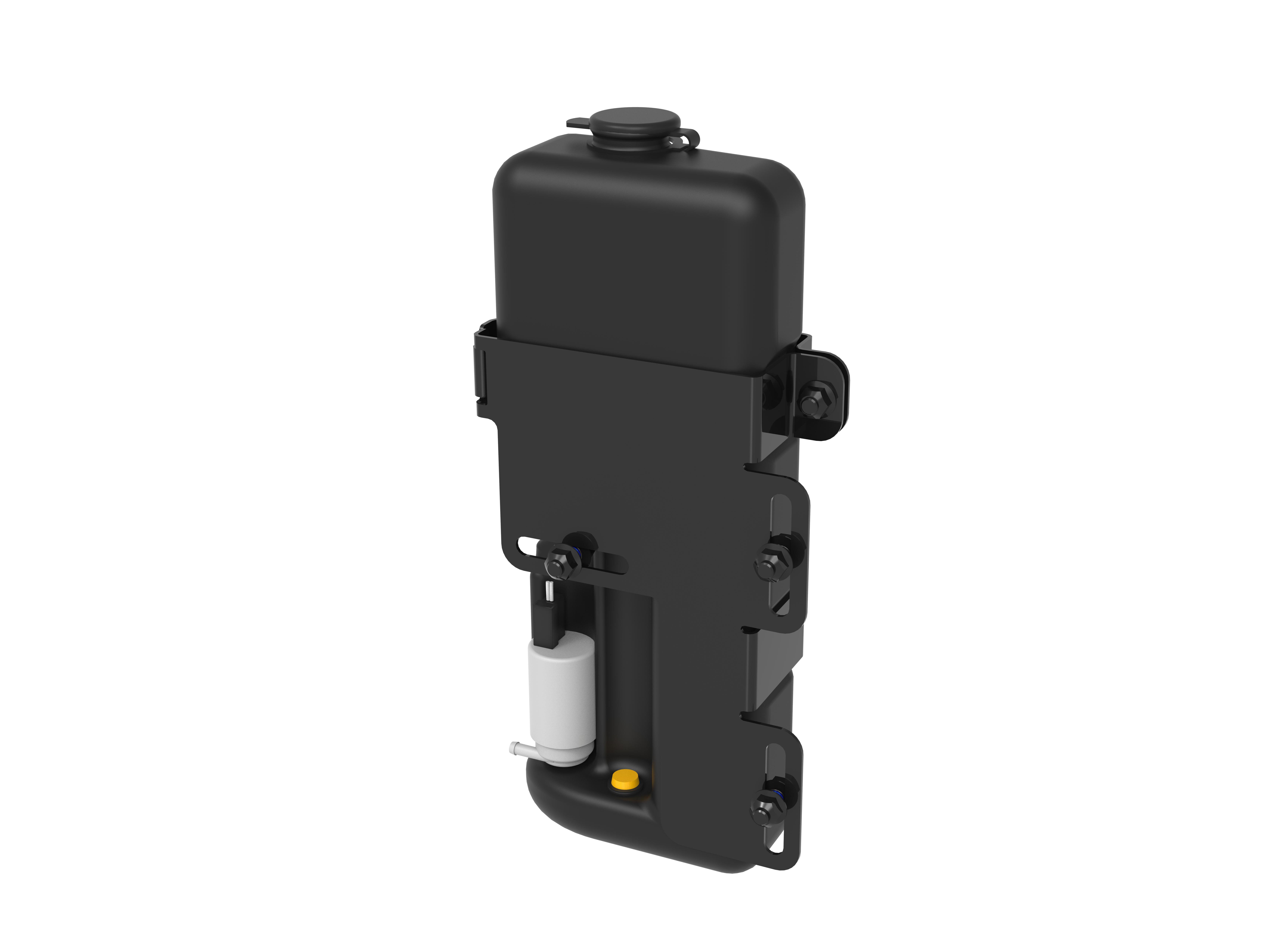

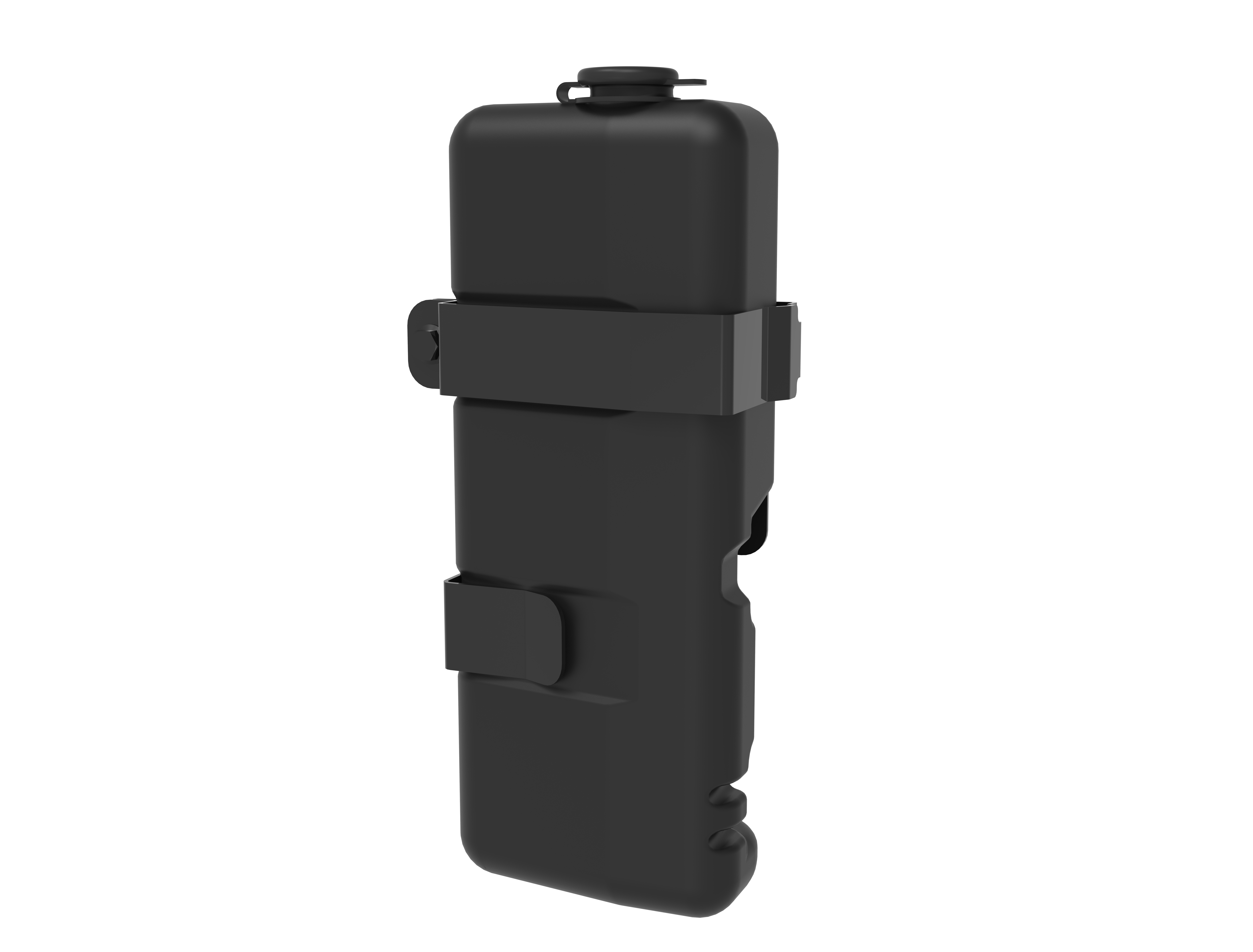

Wipe water tank

3L tank for up to 2 pumps, universal bracket

The wipe water tank can be easily installed on the tractor using three screws. The cable set allows you to choose freely the installation location. We recommend installation at the rear.

Thanks to the built-in pump, windscreen washer fluid can be easily activated at the touch of a switch for optimum cleaning of the window.

Please read the important note!

Below you will find a document available for download.
This document contains the dimensions of the tank and the dimensions of the interfaces for attaching the bracket.

Download_Dimensions_tank_and_bracket (.pdf)

Important Note:

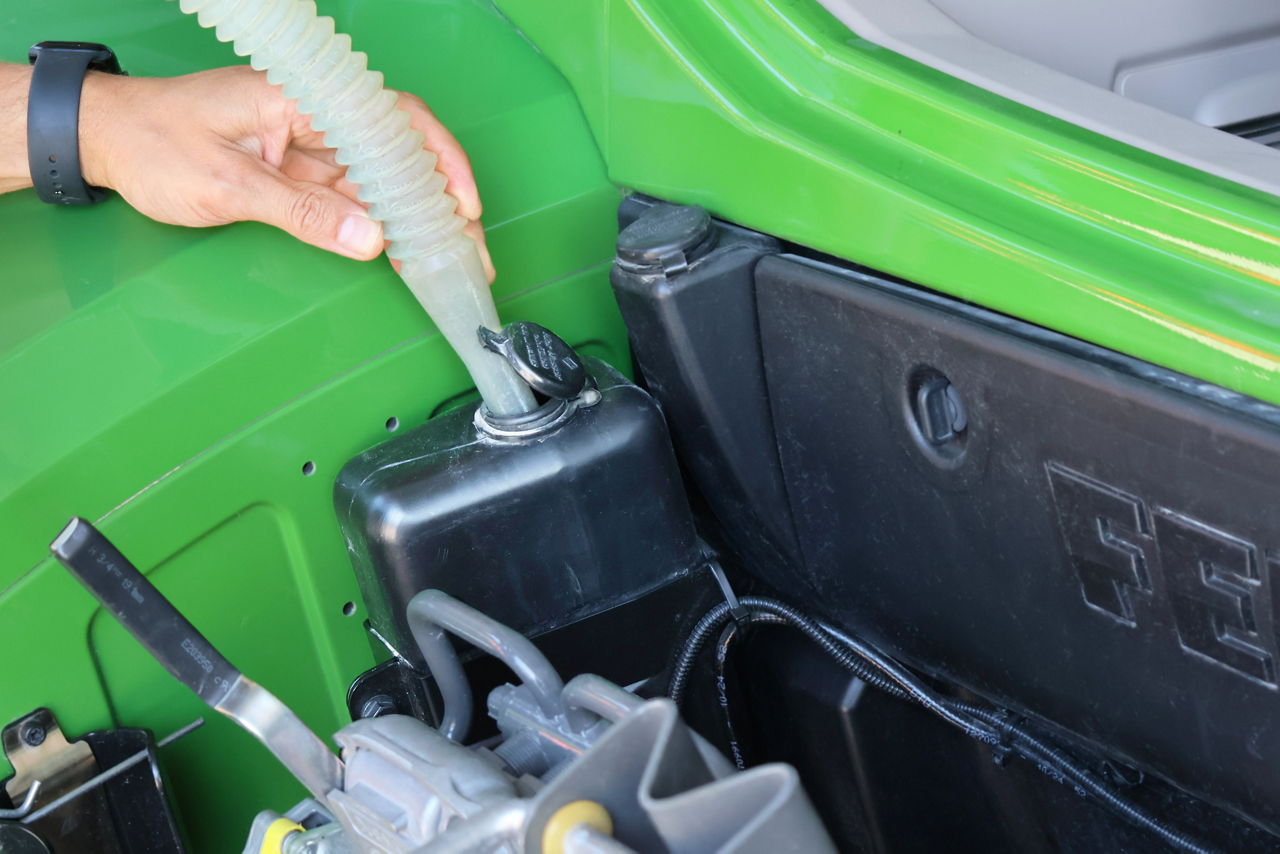

Check with the following list, if an additional pump of CLEAR-Wiper can be installed at the original tank of your Fendt-tractor. If possible, the optional tank must not be ordered.

Fendt 300 Vario Gen3, Gen4
Fendt 500 Vario Gen1, Gen2, Gen3
Fendt 700 Vario Gen4, Gen5, Gen6
→ Case A: Tractor is not equipped with a rear wiper, one pump of CLEAR-Wiper can be installed at the original tank by removing a plug.
→ Case B: Tractor is equipped with a rear wiper, a hole of Ø 11 mm need to be drilled in the tank to install one pump for CLEAR-Wiper.

Fendt 500 Vario Gen5
Fendt 600 Vario Gen1
Fendt 700 Vario Gen7
→ Tractor is not equipped with wiper on the rear and/or right, the existing hole in the tank can be used for one pump of CLEAR-Wiper (only a plug needs to be removed).

Fendt 200 V/F/P Vario Gen3
Fendt e100V Vario Gen1
→ Tractor is not equipped with a rear wiper, the existing hole in the tank can be used for one pump of CLEAR-Wiper (only a plug needs to be removed).

QUICK GUIDE

HOW TO USE

The windscreen wiper unit can be easily glued to the glass using a template. No complicated conversion is required.
The optional windscreen washer reservoir is screwed into the desired position on the vehicle using its bracket.

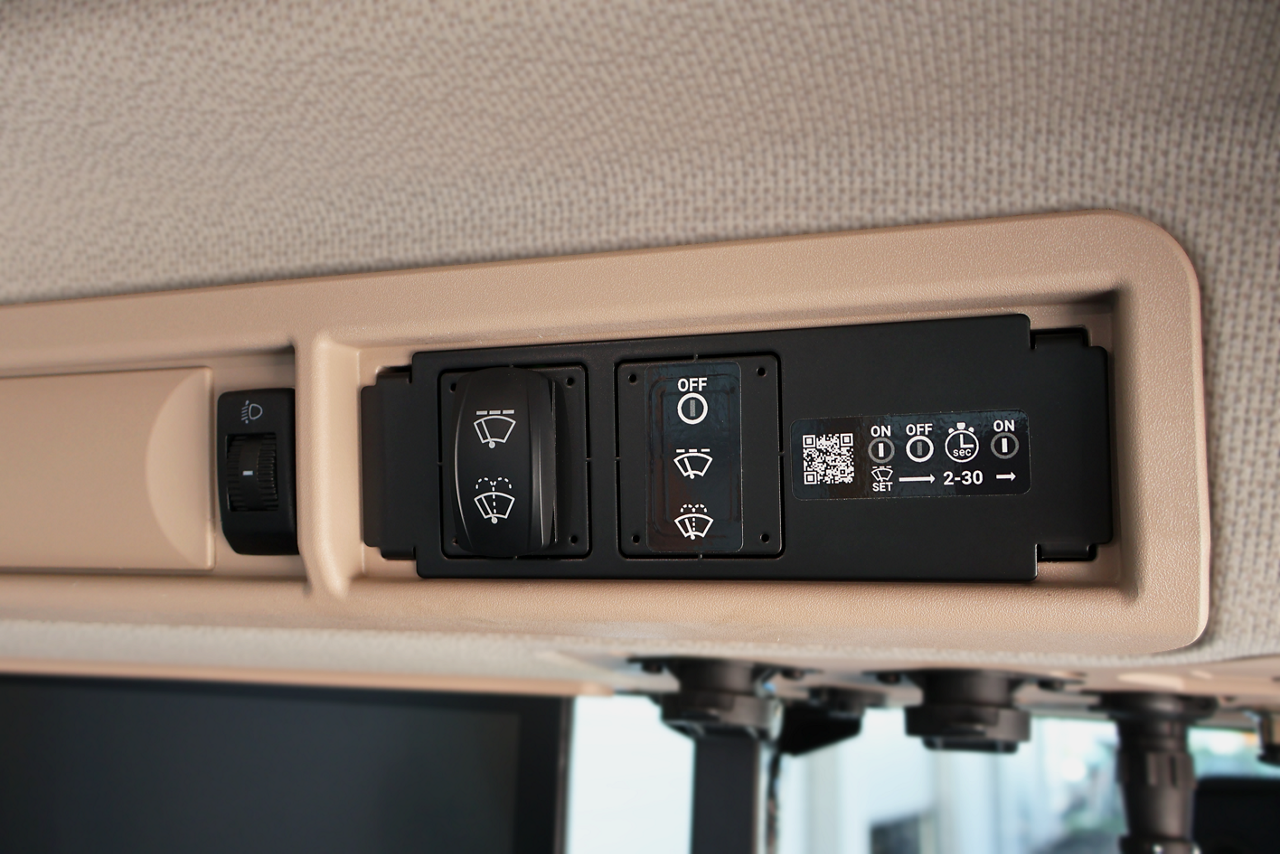

The control unit can be installed either in the storage compartment or as a separate control unit.

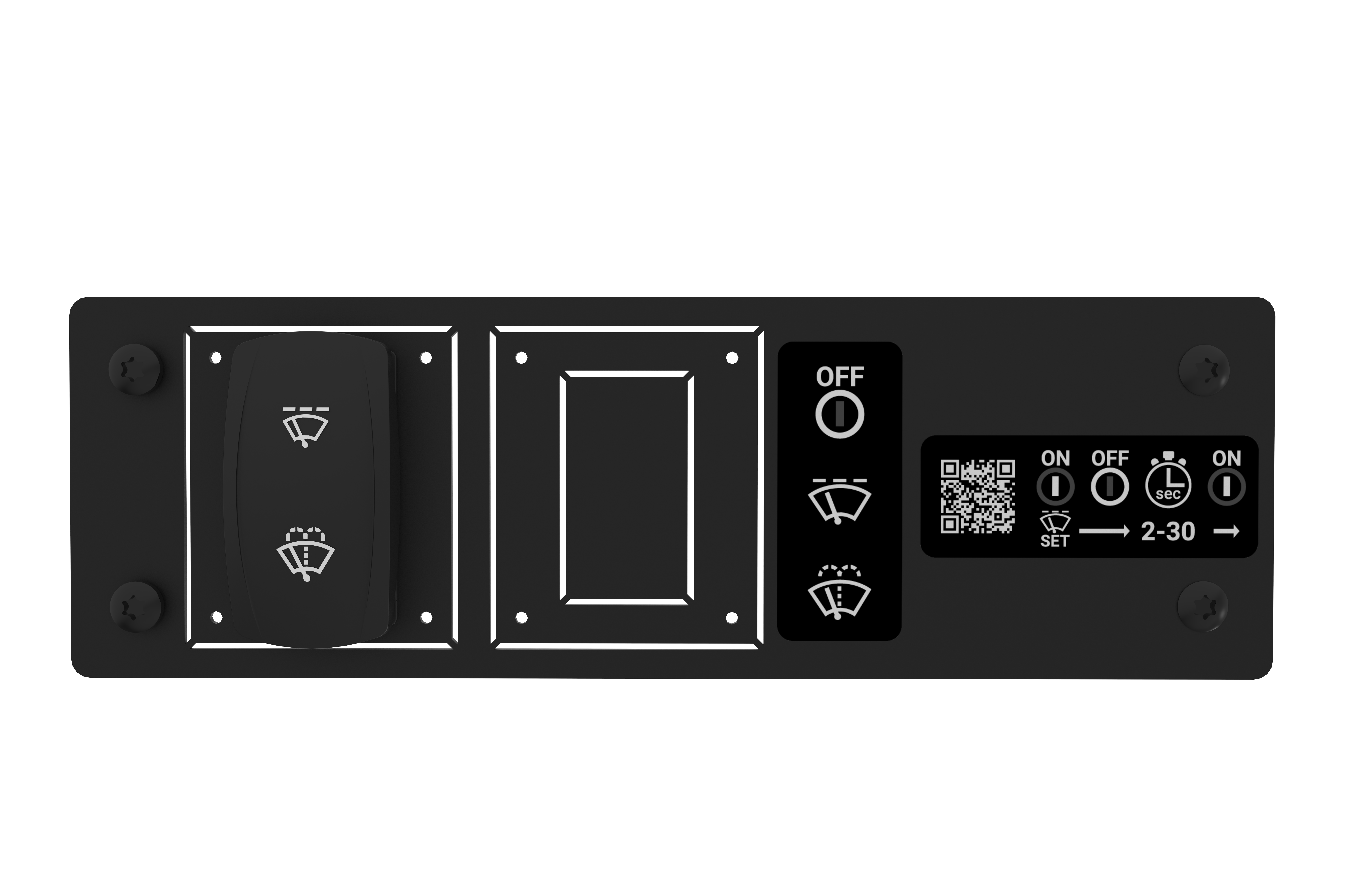

The control unit

The wiper unit can be controlled with this switch. When switched off, the switch is in the tilted up position.

To start, move the switch to the centre position. To set the interval, tilt the switch back to the upper position, wait for the desired interval time (2 - 30 sec) and then tilt the switch back to the centre position. The CLEAR-Wiper now wipes at the interval time just configured. To operate the windscreen wiper fluid, press the switch to the lower position.

To switch off, tilt the switch to the top position and leave it there.

SAFETY

Please observe the following safety instructions:

Be sure to read the complete installation instructions and install only according to the instructions.

Use only on agricultural, forestry, and construction machinery! The CLEAR-Wiper is intended exclusively for use on agricultural vehicles, forestry machines, and construction equipment. Installation on other types of vehicles is not permitted.
Do not extend beyond vehicle edges! Ensure that the CLEAR-Wiper does not protrude beyond the outer edges of the vehicle after installation to prevent hazards and damage.
The wiper unit must be correctly positioned – on Fendt models, the positioning sticker included in the kit helps with this. The CLEAR-Wiper must not be affixed in the driver's immediate field of vision. Furthermore, the view of the exterior mirrors must not be obscured or restricted under any circumstances.

Only use the wiring supplied – do not use your own solutions!

If the windscreen is very dirty, the windscreen washer function can be activated – fill only with a suitable cleaning agent.

Check regularly that the wiper unit is securely attached.

Do not use aggressive cleaning agents – these can damage the adhesive or electronics.

In case of defects or uncertainties: contact your dealer or Fendt Service.

Only use original accessories – third-party parts can lead to malfunctions.

MANUALS

ADDITIONAL INFORMATION

Assembly time: About 8-9 hours. Drying time of the adhesive: Minimum 24h.

Configuring the wiper motor of the CLEAR-Wiper via the AGCO EDT Tool is mandatory.

The minimum wiping angle is 45°. The maximum wiping angle is 330°.

The Fendt kits contain positioning stickers for the wiper unit that are specially tailored to the series. The optimum radius for the universal kits can be measured using a template.

RADIUS DETERMINATION FOR UNIVERSAL KIT

Instructions for determining the radius

Using the template and a suitable measuring rod, you can measure the maximum wiping radius on your machine. This allows you to order the right kit and achieve the best possible wiping area.

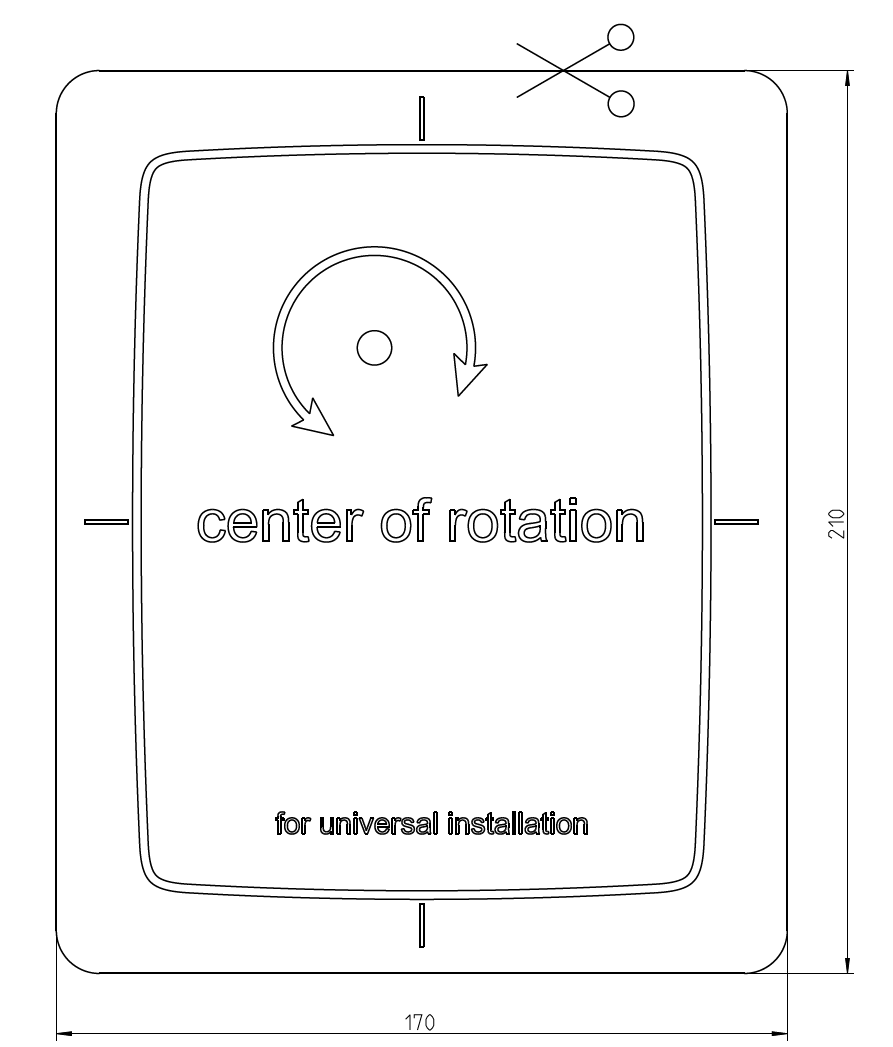

Print the A4 template attached below. The template shows the wiper unit in its original size.

Check the dimensions after printing.

Stick the template onto the window of your machine with adhesive tape where you intend to glue the wiper unit.

Use a folding rule or comparable mesurement tool to determine the wipe radius. Measure from the center of rotation and consider possible obstacles on the window.

Now select the next smaller wiping radius so that the maximum wiping radius just measured is not exceeded.
The following radii are available: R590 mm, R630 mm, R690 mm and R710 mm.

template for measuring radius for universal kit

Download_template_for_measuring_radius (.pdf)

ASSEMBLY INSTRUCTIONS

🔧 Here are the installation instructions for the CLEAR wiper in various languages.
The programming instructions for the CLEAR wiper are included in the installation instructions.

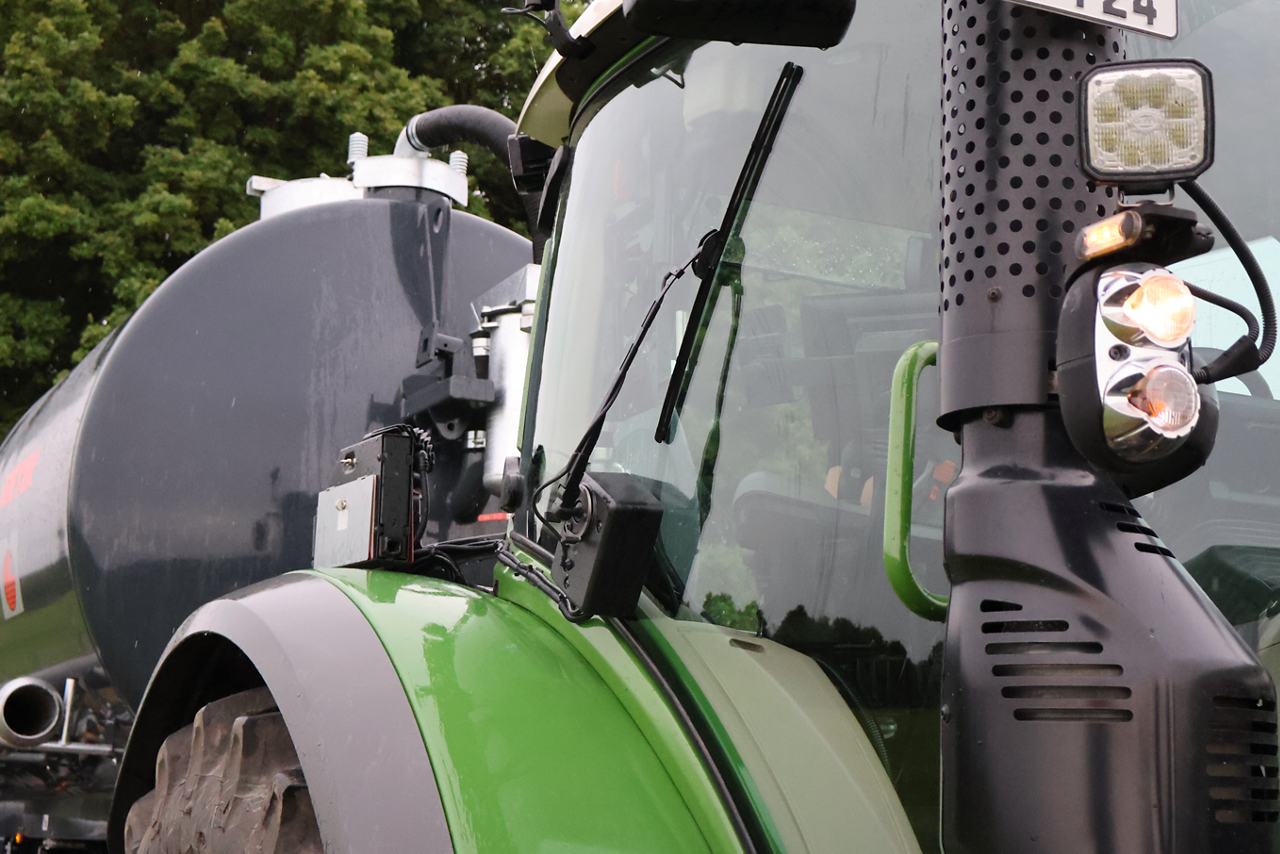

CLEAR-Wiper and chassis organizer close up

FAQ´s

- Can I order the CLEAR-Wiper ex works?
No, the CLEAR-Wiper is a retrofit solution. It can be ordered from all AGCO dealers via AGCO Parts.

- Are the CLEAR-Wiper available in all markets (EME, NA, ...)?
Yes, Worldwide!

- Which models in the Fendt range are compatible with the CLEAR-Wiper?
The CLEAR-Wiper can be installed on all machines, regardless of brand, but a 12V electrical system is required!
The installation instructions provide a suggestion for wiring and installation for Fendt cabs, but this can be simply adapted to all machines.

- Can I assemble the CLEAR-Wiper myself or do I need professional help?
The installation can be carried out independently; the motor must be programmed by a certified workshop.

- How many litres fit in the optional wipe water tank?
The wipe water tank holds 3 litres.

- How does the intermittent wiper function work?
The intermittent function is controlled by the on/off button. More detailed information can be found under the ‘How to install and use’ tab.

- How can be the wipe water activated?
The wipe water can be activated simply by pressing the switch at the control unit down.

- Are there different sizes or versions of the CLEAR-Wiper?
There are kits available for the various Fendt cabs.
For non-Fendt machines, the maximum wiper radius can be easily measured and a kit in the appropriate size can be ordered.
