Application Lift System

Easily swap your system on your own time and at your own location

The Fendt Rogator 900 has always been the market leader in “Combo-Ability”, or the ability to change systems for different applications, increasing the return on investment of the machine.  Our new solution gives the customer/dealer a way to easily lift application systems on their own timetable and at their location, further advancing the versatility and ROI of their machine. Read on to discover more!

QUICK GUIDE

KEY FEATURES

HOW TO USE

The following quick start steps do not replace the operating instructions, they only serve as a short overview. Please read the instruction manual before using for the first time and comply with the safety regulations.

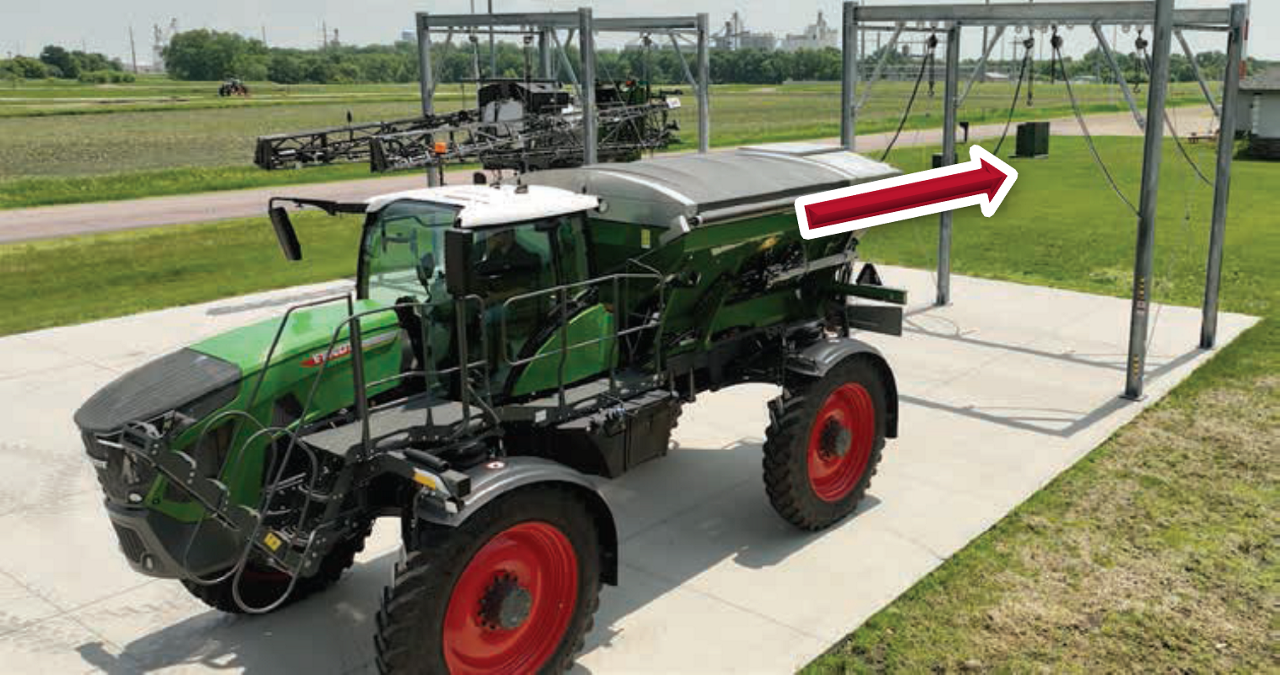

BACK UP

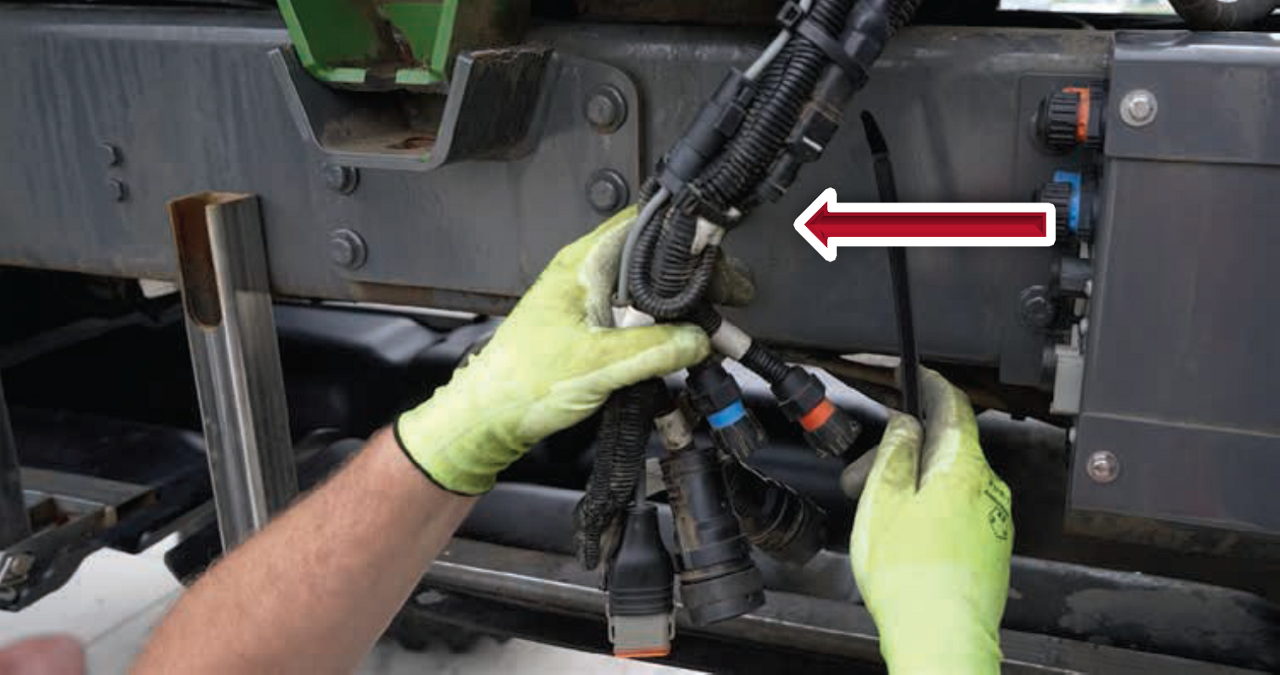

DISCONNECT

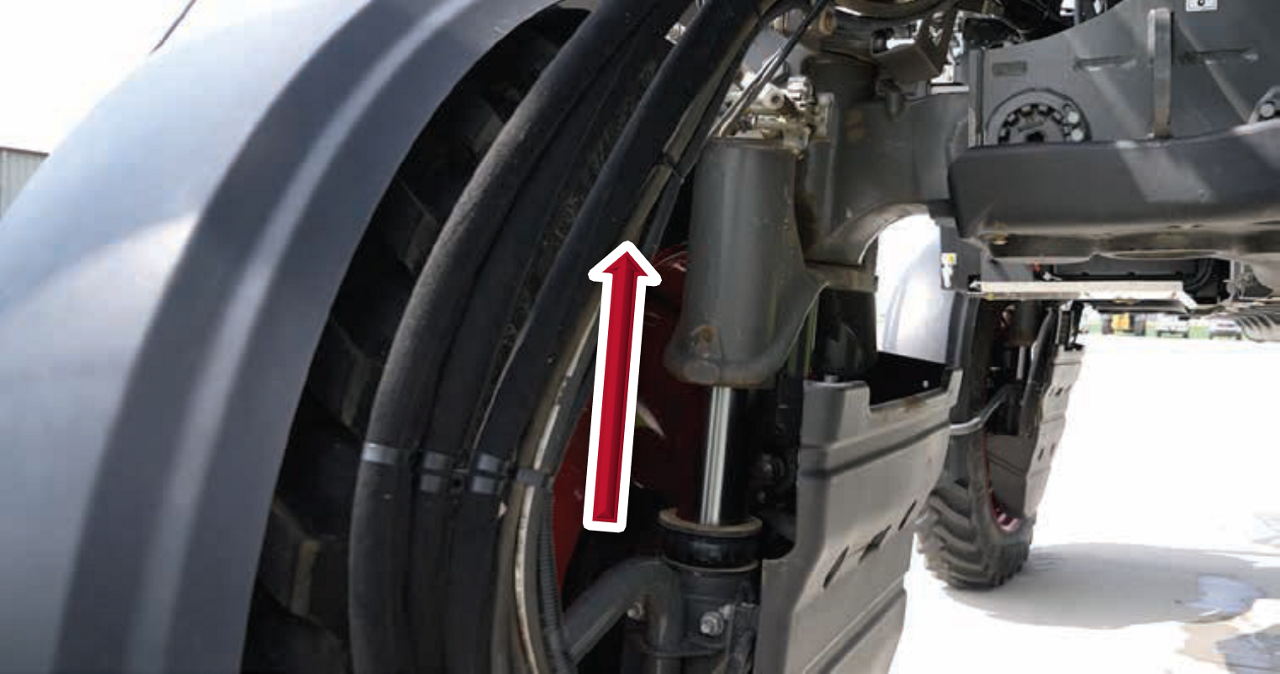

LIFT UP

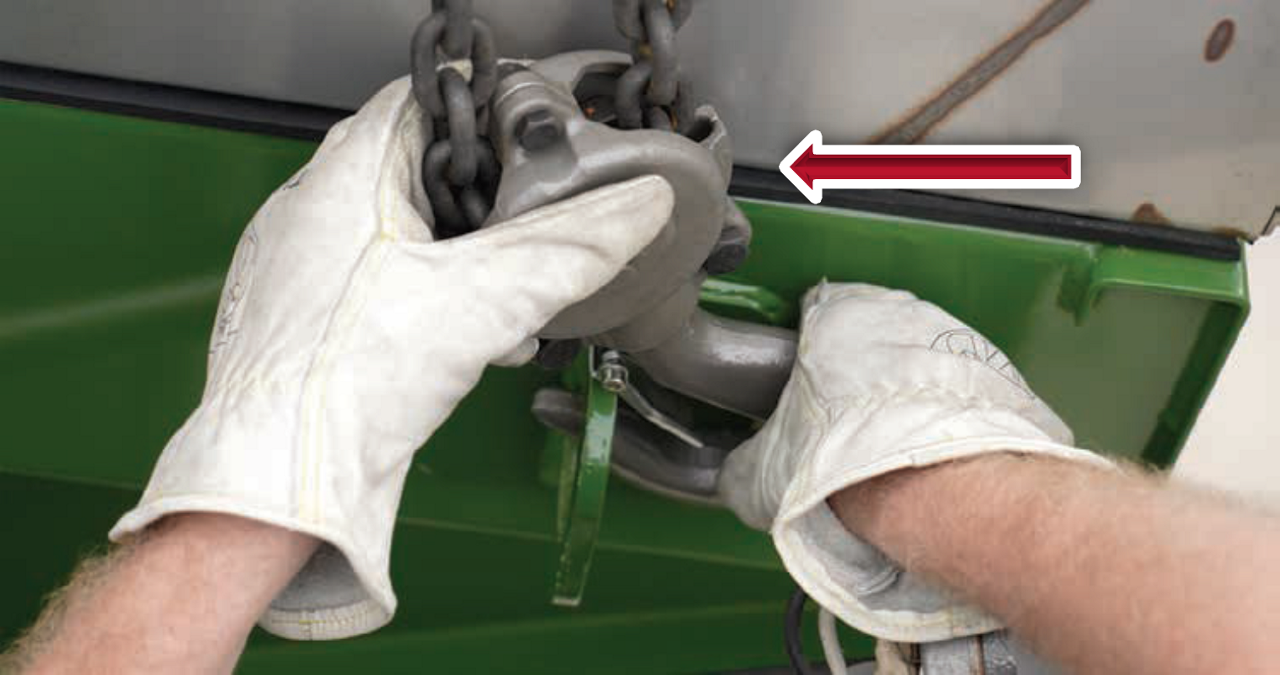

HOOK UP

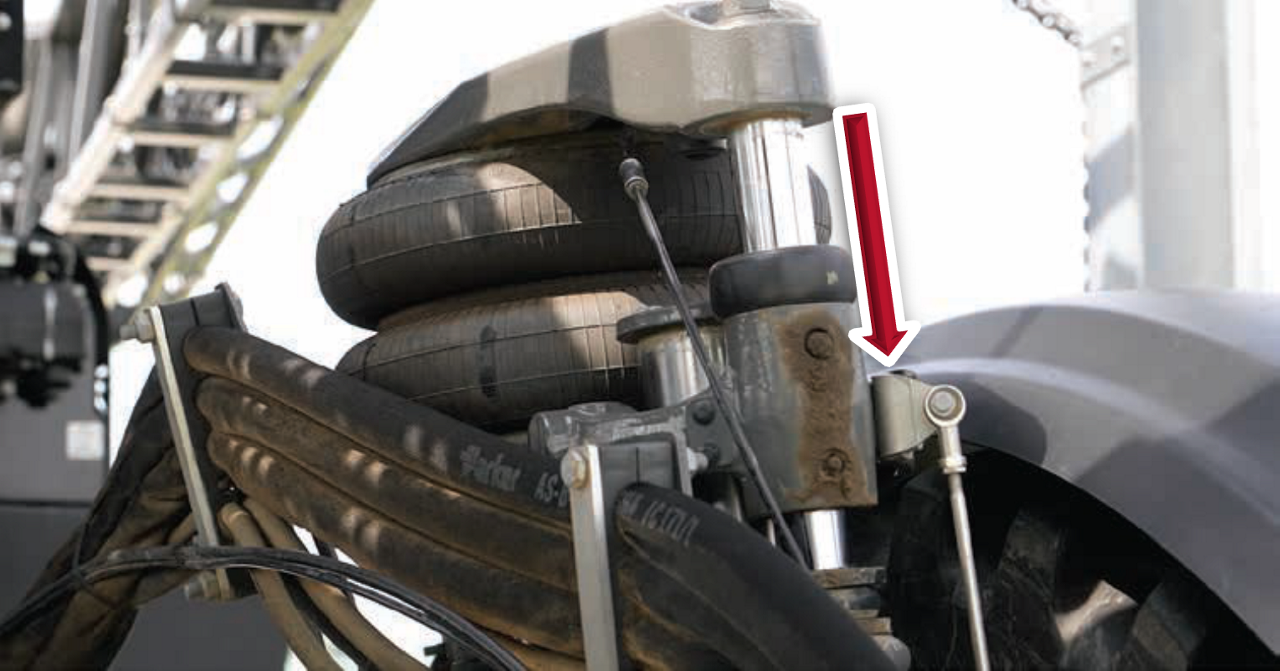

DROP DOWN

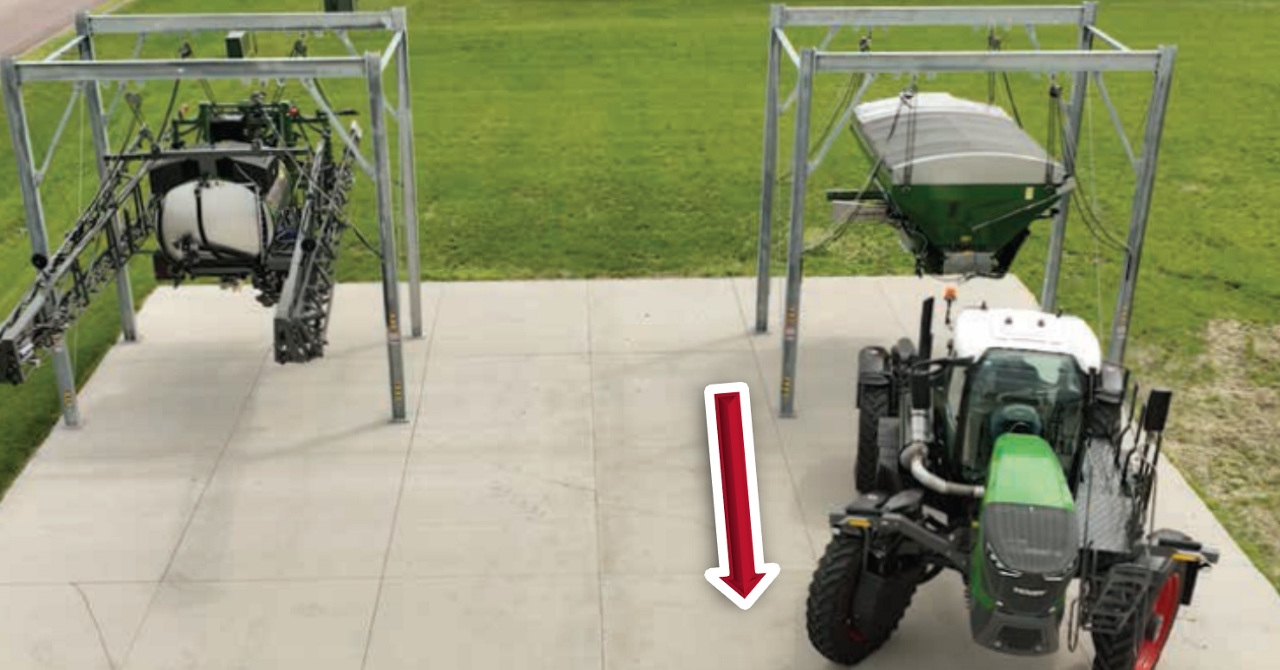

DRIVE AWAY

SAFETY

For further safety instructions, please refer to the instruction manual.

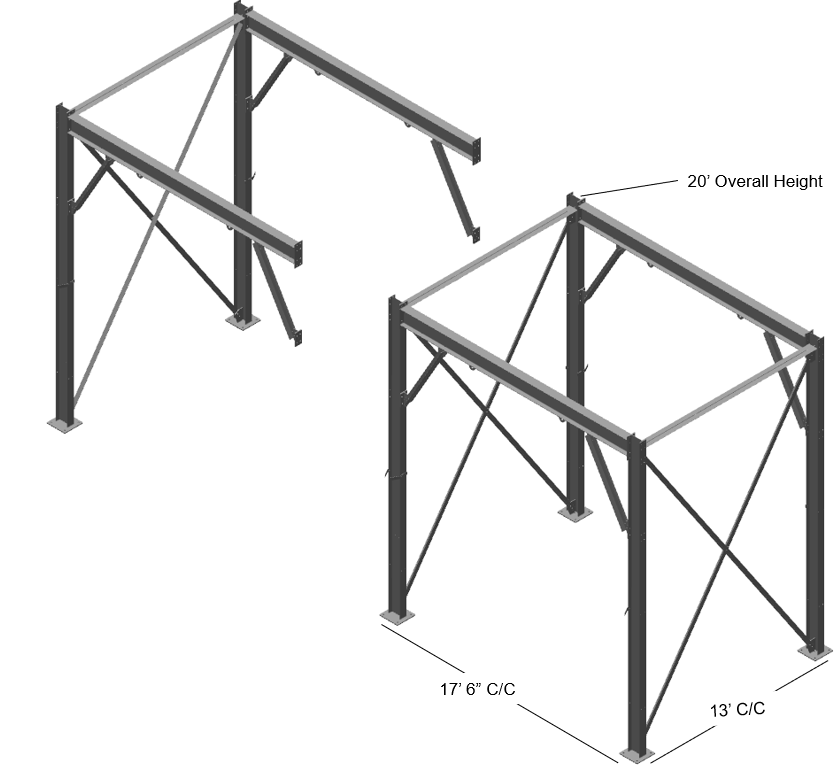

OPERATING

PRODUCT OVERVIEW

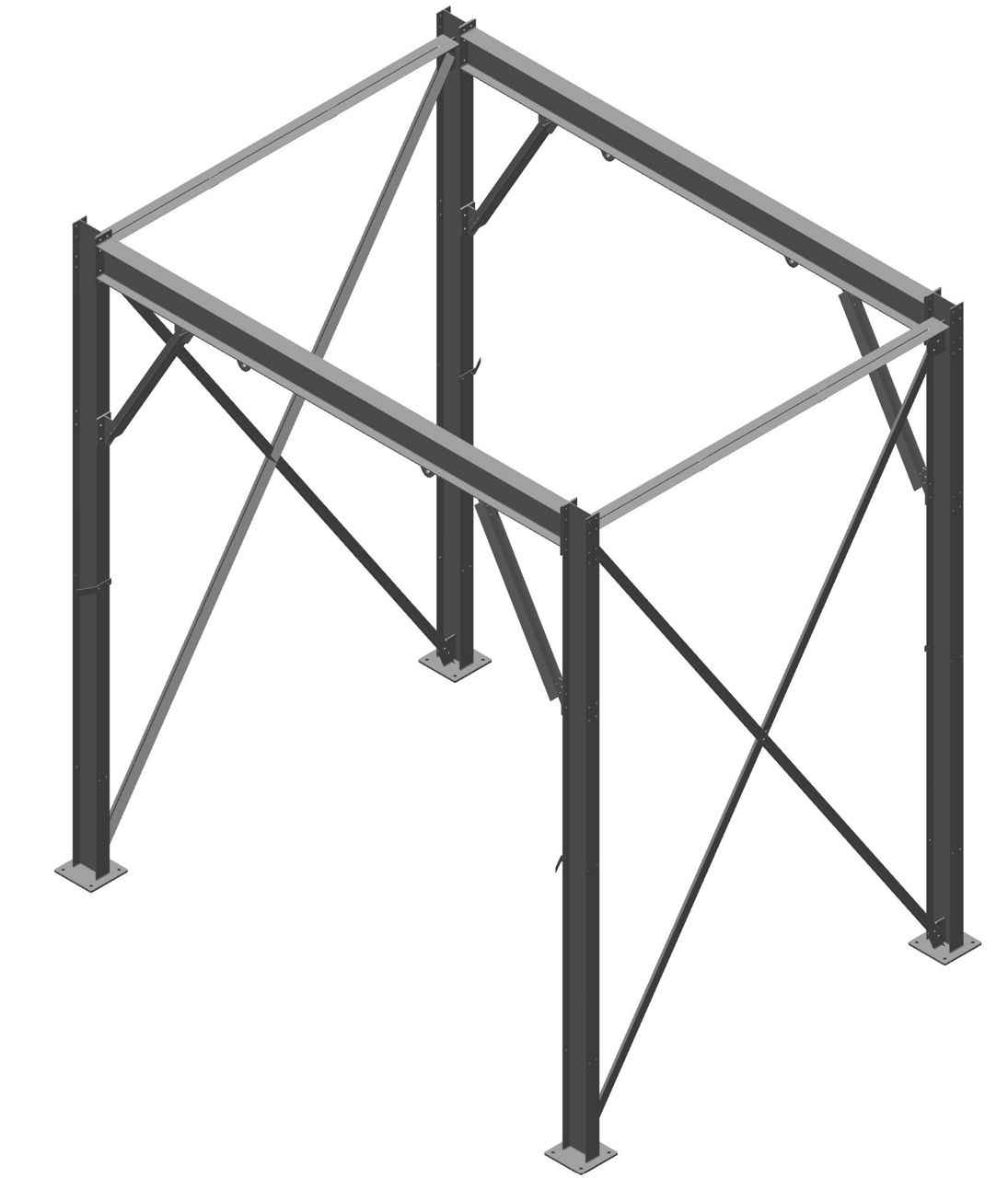

Single Bay

    Part Number: ACP0940340

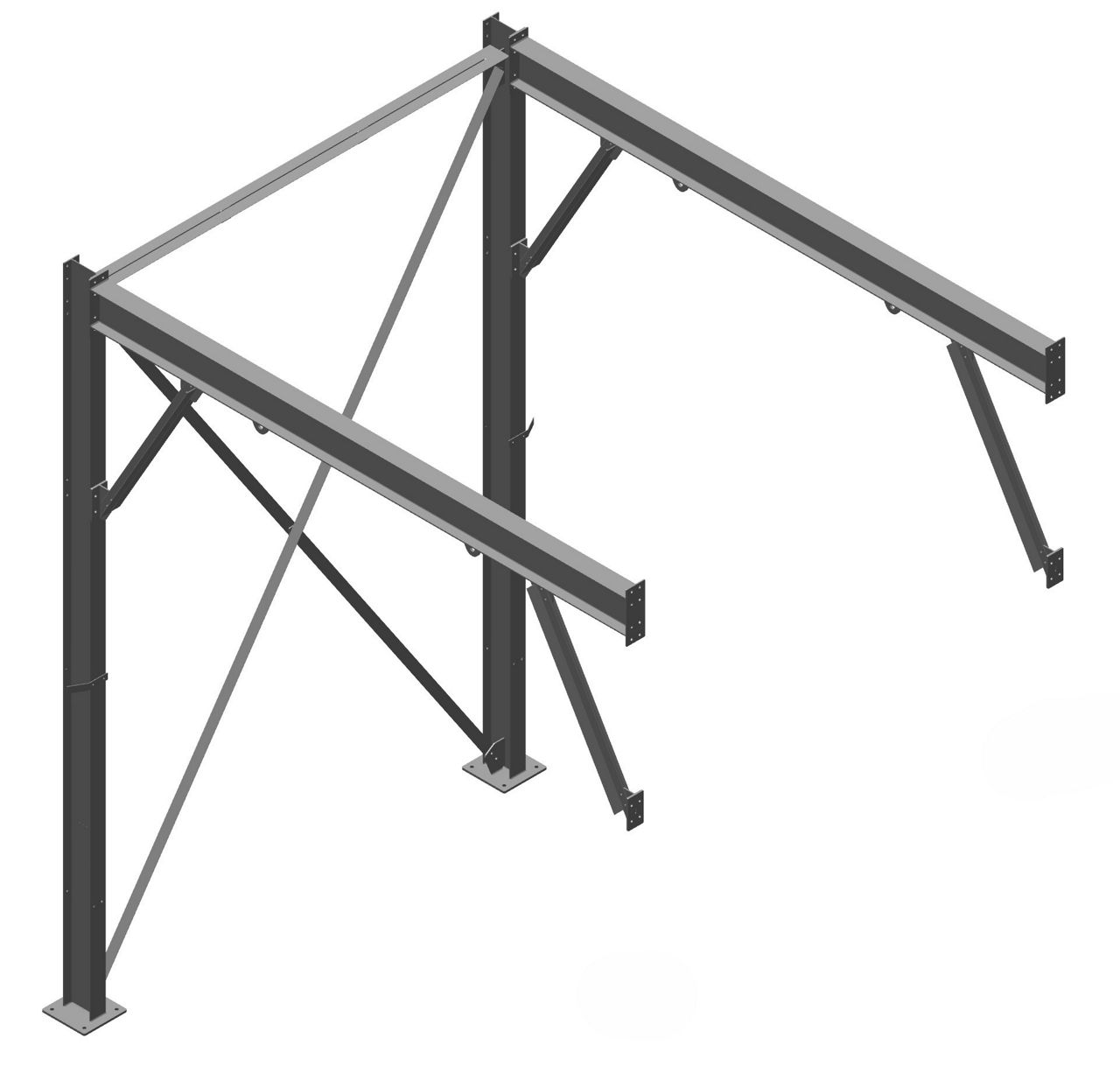

Expansion Bay

    Part Number: ACP0940350

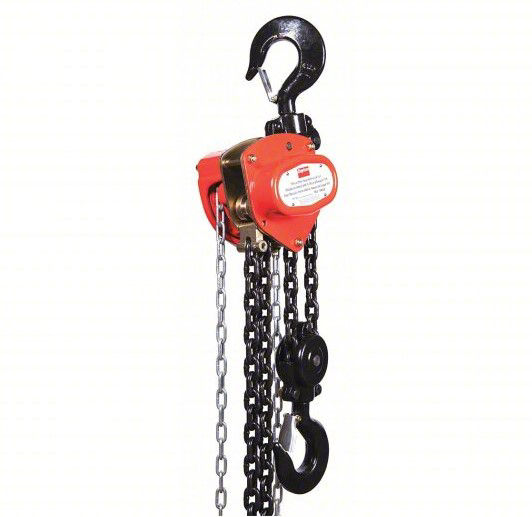

Hoist - Single Unit

    Part Number: ACP0940360

VIDEO

FAQ's

Can this be used for storing loose systems?

Application systems should be lowered onto blocks or removed from the structure after removal from machine.

Is a concrete foundation required for this?

Yes, the structure needs to be installed on a concrete foundation.  See product instruction manual for specific foundation requirements.

Will this work with other application equipment besides the Fendt Rogator?

Yes, the structure is designed to work with most Ag-Chem/AGCO legacy equipment such as RoGator and TerraGator and should work with most other machines that have removable application systems.  Due to variability in design and weight of machines from other manufacturers as well as special options machines, we cannot guarantee compatibility on all makes and models.  See product instruction manual for dimensions and load limits of structure to ensure compatibility with your machine.

What is the lifting capacity?

Total weight cannot exceed 12,500lbs [5,670kg].  Weight on front or rear beam cannot exceed 10,000lbs [4,536kg].

How high will this lift?

The total amount of lift depends on the height of your machine and the length of the chain hoist used.  If using the supplied chain hoists, the lower hook has a maximum height of 16.6' [5.1m].

Currently only available in the continental region of USA/Canada
