Fendt Extra Valves

Logo EXTRA VALVES

2 additional hydraulic valves - Retrofit for Fendt 200 and 300 Vario

Actual Fendt e100, 200S and 300 series only offer 4 hydraulic valves in the back or 3 in the back and 1 in the front. With Frontloader there are not enough valves left. The Extra-Valves retrofit-kit gives your tractor two additional hydraulic valves.


Now Available!

PRODUCT OVERVIEW

Tractor hydraulic valves overview

Tractor overview

The kit is customised to your tractor and comes with 2 valves, connection pipes, cable harness, additional brackets and installation guideline.

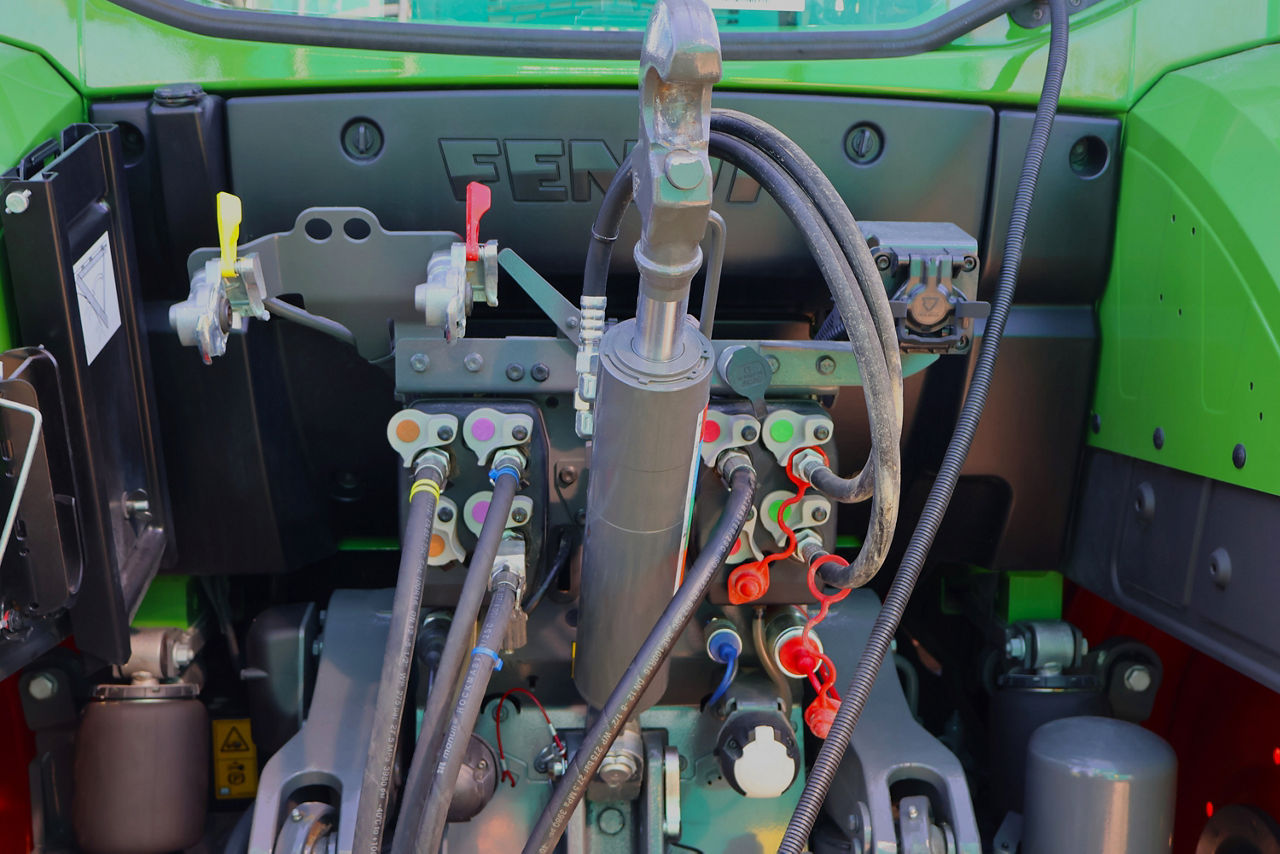

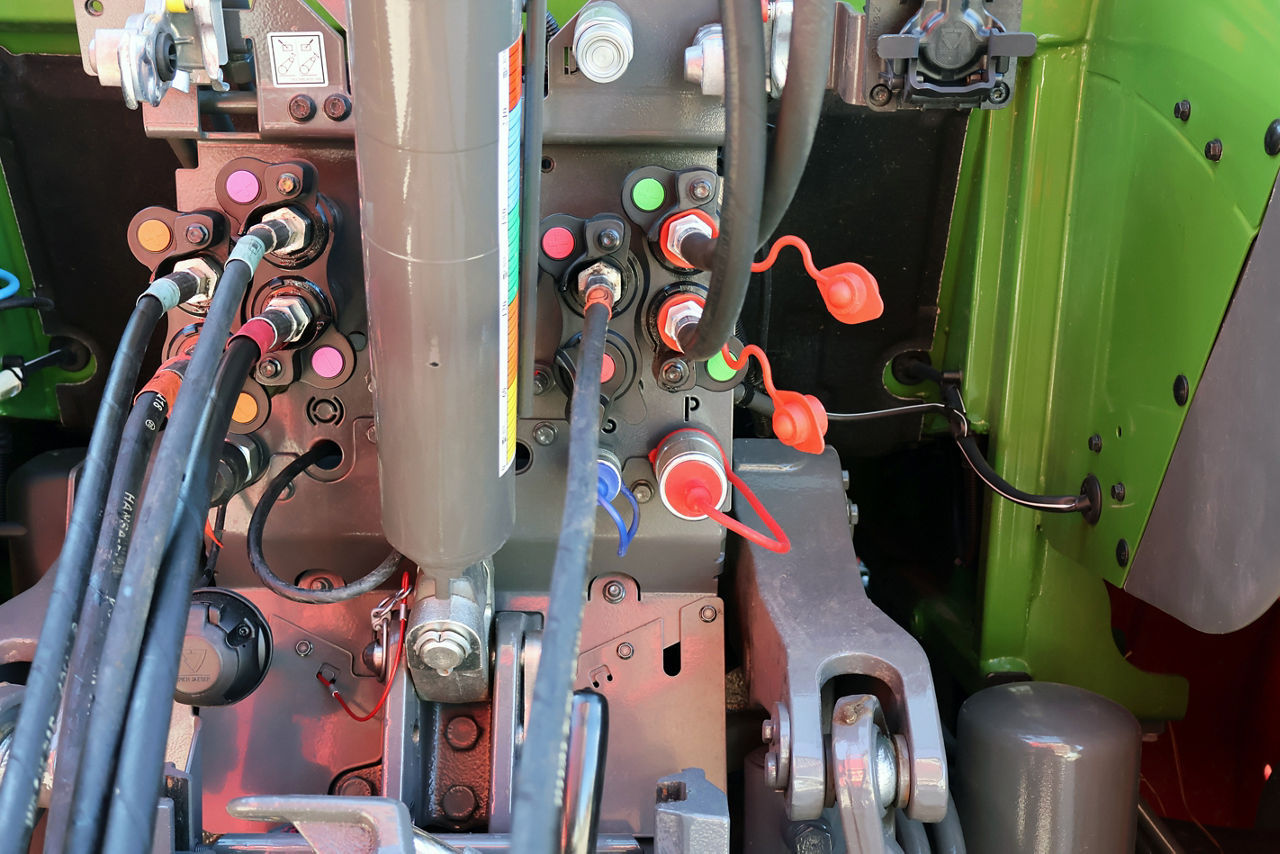

Valves 1 and 2 (yellow and blue) are only used with the retrofit solution for the multi-coupler or the front loader. Valves 5 and 6 (brown and purple) are at the rear in the same position as valves 1 and 2 originally.

KEY FEATURES

OVERVIEW EXTRA-VALVES FENDT 200 VARIO GEN3 & FENDT e100 VARIO GEN1

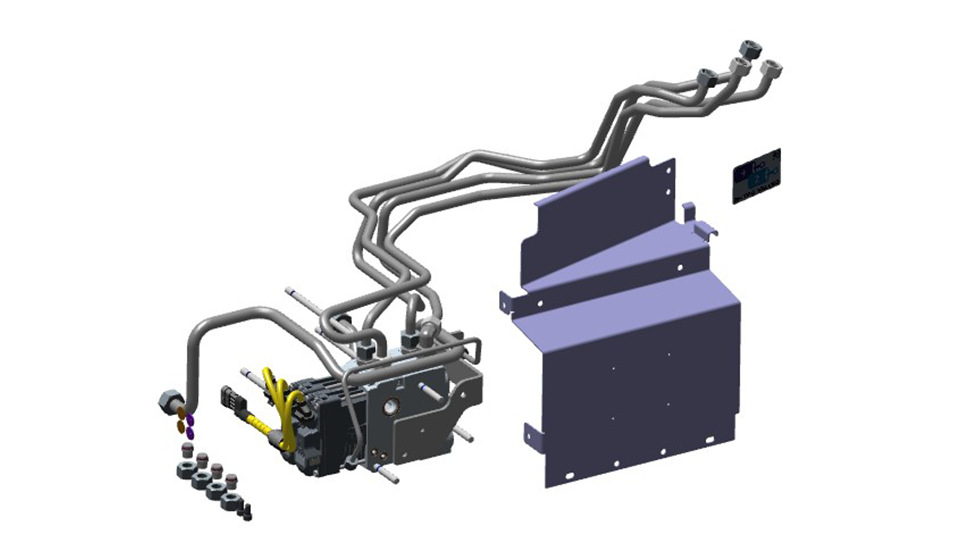

BASE KIT EXTRA VALVES FENDT 200 VARIO GEN3 & FENDT e100 VARIO GEN1

PART NO.: 002H382298500[EAME] | 72682073[NA]

BASE KIT EXTRA VALVES FENDT 200 VARIO GEN3 & FENDT e100 VARIO GEN1

ATTENTION: 2 additional valves must be ordered
PART NO.: ACW511098G

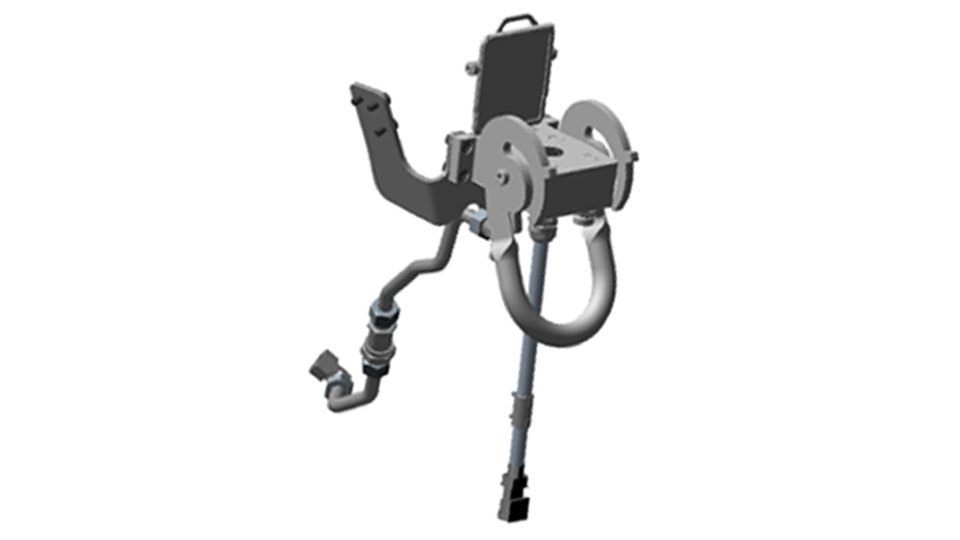

Kit for missing Multicoupler

PART NO.: 002H382298502[EAME] | 72682074[NA]

Kit for missing Multicoupler

Order this kit if tractor is not equipped with one of the following options (sales-code): F098/ F109/ F129/ F181
Additional kit if 3rd & 4th or 4th valve is missing

PART NO.: 002H382298504[EAME] | 72682075[NA]

Additional kit if 3rd & 4th or 4th valve is missing

Order this kit 1x if tractor is not equipped with one of the following options (sales-code): H086/ H089/ H145

Order this kit 2x if tractor is not equipped with one of the following options (sales-code): H061/ H078

OVERVIEW EXTRA-VALVES FENDT 300 VARIO GEN4

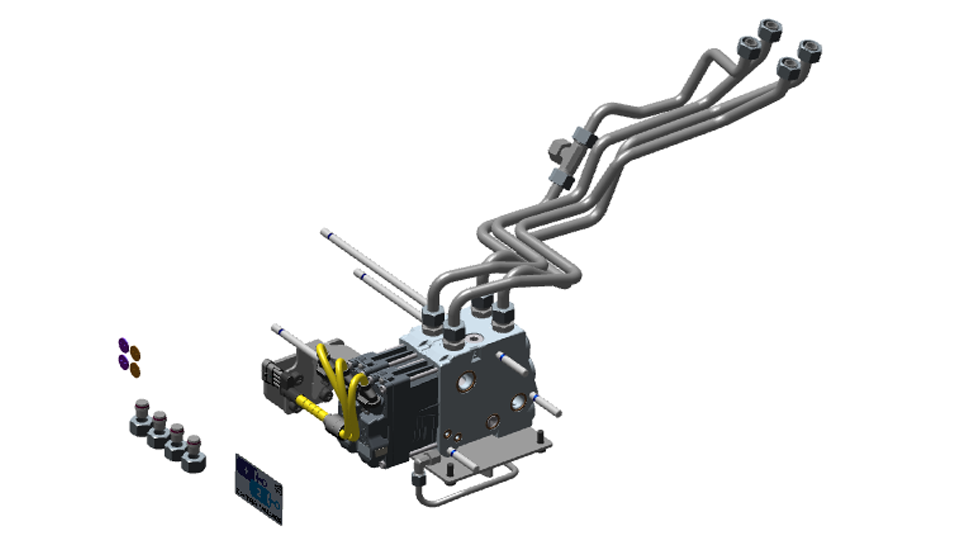

BASE KIT EXTRA VALVES FENDT 300 VARIO GEN4

PART NO.: 003H382354100[EAME] | 72682077[NA]

BASE KIT EXTRA VALVES FENDT 300 VARIO GEN4

ATTENTION: 2 additional valves must be ordered!
PART NO.: ACW511098G

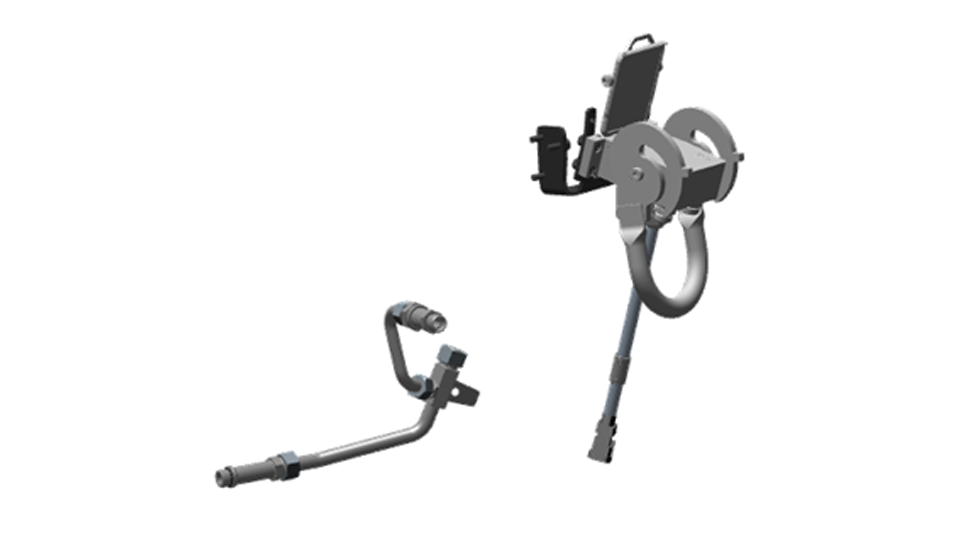

Kit for missing multicoupler

PART NO.: 003H382354102[EAME] | 72682078[NA]

Kit for missing multicoupler

Order this kit if tractor is not equipped with one of the following options (sales-code): F088/ F109/ F129/ F183/ F188/ F189/ F196/ F197

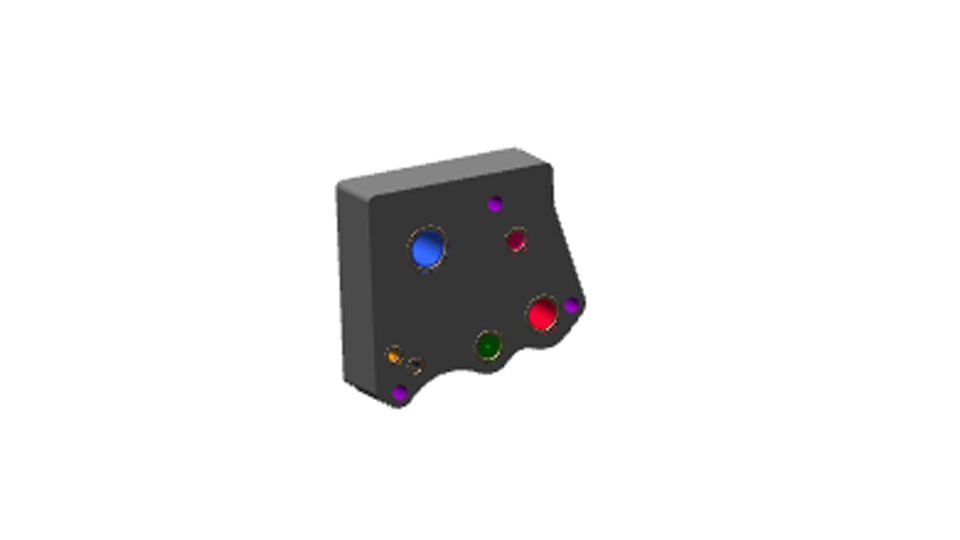

additional Dummy plate for missing 4th valve

PART NO.: 002H382298504[EAME] | 72682075[NA]

additional Dummy plate for missing 4th valve

Order this kit if tractor is not equipped with one of the following options (sales-code): H087/ H089/ H145

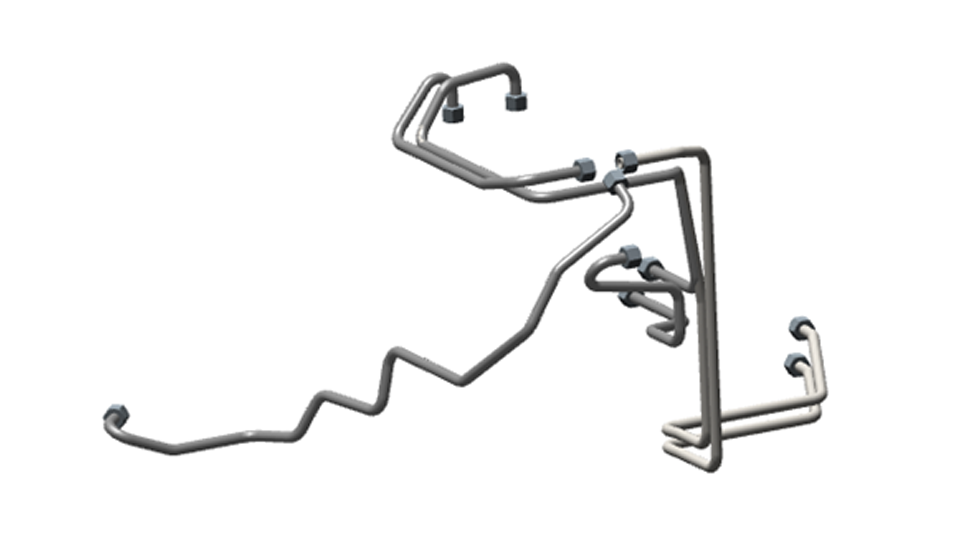

Front power lift Extension

PART NO.: 003H382354106[EAME] | 72682079[NA]

Front power lift Extension

Order this kit if tractor is equipped with one of the following options (sales-code): K120/ K126/ K129

MANUALS

ADDITIONAL INFORMATION

  • Assembly time: About 8-10 hours!

  • Activation of the EXTRA VALVES via TechConnect (CPQ Aftersales) is mandatory.

  • The EXTRA-VALVES do not require an additional operating element to control the new valves. Please refer to the tractor manual to set the valves; operation is the same as for the existing valves.

FAQ´s

-   Can I order the EXTRA VALVES ex works?
No. The Extra-Valves are a retrofit solution. The kit can be ordered from all AGCO dealers via AGCO Parts or the CPQ Configurator.

-   Are the EXTRA VALVES also available for other series?
No, the Extra-Valves are only available for the Fendt Vario e100 Gen1, 200 Gen3 and 300 Gen4.

-   Are the EXTRA VALVES available in all markets (EME, NA, ...)?
Yes, worldwide!

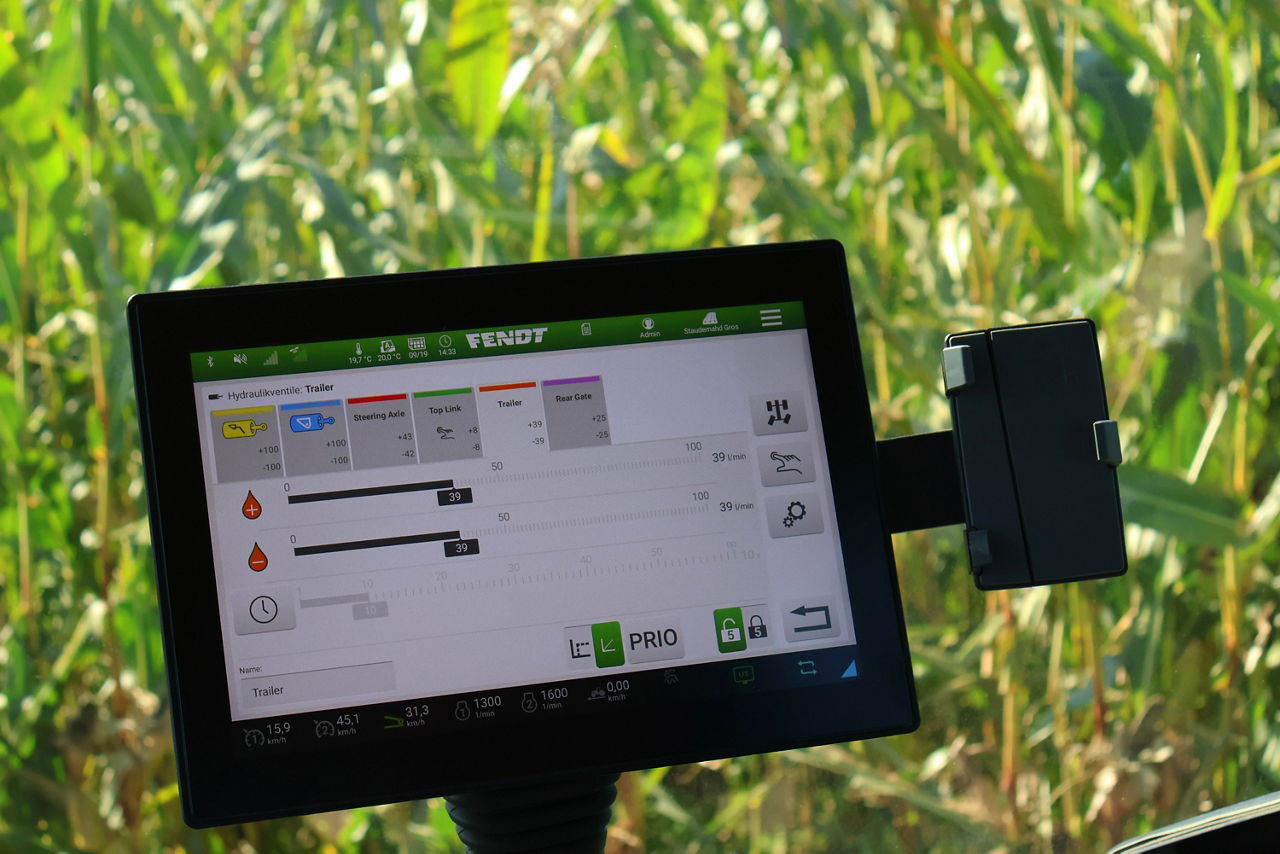

-   How are the additional valves operated?
The valves can be operated entirely via the FendtONE terminal and have the same range of functions as the existing valves.

-   Can the kit be installed by the user or is a workshop required?
A workshop is absolutely necessary to activate the EXTRA VALVES.

-   How many valves must the tractor already have in order for the kit to be installed?
It does not matter if the tractor already has 2, 3 or 4 hydraulic valves.
If the tractor has fewer than 4 valves, the missing valve discs must be bridged with a kit of blank discs.
